Full Automatic High speed Flexo ink Printing Slotting Die cutting
machine Flexo Printer Slotter full computerized control Foshan
Factory
General Specifications
Automatic corrugated board multi-color printer slotter die-cutter
machine, is the must need in the paper box package industry, that
is easy operation and save the labor and save the cost, and this is
the most popular machines in current carton box factory.
Adopt vacuum absorption, lead edge feeding paperboard, design and
manufacturing, the whole operation is humanized design, can be set
in a short time, modify, execute, replace, memory function, and
accurate display.
All transmission roller material, adopt high-quality steel,
balanced correction, running smooth, surface grinding, hard chrome
plating.
All gear drive, using high-quality alloy steel, heat treatment,
grinding. 4.The oil automatic balance device, keeping each unit oil
balance.
With automatic -returning-zero, record and memory, printing plate
cleaned memory, order and dust removal, and other functions, can be
selected combined with touch screen PLC control, easy operation.
The whole machine is adopted international famous brand appliances
and computer software, the quality is stable and reliable.
Man-machine interface, Multi-point touch screen control, computer
order management, easy to operate. Replace the order faster.
The Photo of Machine
1. Equipped with advanced feed system
2. Draught fan can regulate wind power. It suits all kinds of
paperboards.
3. Left and right baffles can adjust.
4. Dust pelletizing system can clean dust quickly.
5. Rubber roller use quick release so as to change quickly.
6. Machine with locks move and install overload protection.
- Printing wheel (printing plate form wheel) phase position adjust by
planet wheel, twirl 360°adjust electrically, it can stop at
operation or stop. PLC control system, setups are return to zero,
scrape form memory, automatic reset and phase position adjust after
entering values.
- Printing roller can move from left to right, by ±5MM. printing
surface with scale mark make hang form and distance measurement
easily.
- Install foot pedal control roller rotate. It is easy to change
form, scrape form and pull switch so as to ensure staff safety.
- Anilox roller use “Brightas” to ensure ink distribution effect and
printing quality.
- Rubber shaft use Taiwan Jingyang, waist drum type, good ink
distribution effect and good printing quality.
- 1.With single shaft type slotting, the height of box and phase
position will be adjusted electrically. PLC system have automatic
knife slotting, restore orders and so on functions, it makes
slotting more convenience and high efficiency.
- 2.Synchronous tool apron is made of high-precision screw with a
linear slide rail, which can move left and right stably and
precisely so that the slotting cutter can be adjusted smoothly.
- 3.The copper folk of cutter is designed for automatically
compensating gap device, which prolongs the service life of copper
fork.
- 4.Multiple-spacing device is installed in case of knife collision.
- 5.Automatic inflatable paper-carving knife.
DIE CUTTER SECTION
- Using servo speed to make rubber mat speed and knife tool speed
same, to ensure paperboards die-cutter size exactly, to increase
die-cutting quality and lengthen rubber mat lifetime.
- Rubber mat moves from left to right. It can adjust main machine
operation speed.
- Lengthen rubber mat lifetime.
- Die-cutting roller surface have stainless steel dental crown to fix
knife tool.
THE MAIN PARAMETERS:
| Model | TP-CR | TP-CR | TP-CR |
| Size | 0920 | 1224 | 1628 |
| Max. Sheet Size (FxA) | 890x2000 | 1190x2400 | 1600x2800 |
| Skip Feed Size (FxA) | 1200x2000 | 1400x2400 | 1800x2800 |
| Min. Sheet Size (FxA) | 280x700 | 350x720 | 450x850 |
| Max. Printing Area (FxA) | 890x1960 | 1190x2360 | 1600x2760 |
| Top Speed (Sheet/min) | 300 | 250 | 180 |
| Economic Speed (sheet/min) | 150-250 | 120-220 | 100-160 |
| Min. Slotting Space-Reverse Knife (BxCxBxC) | 270x100x270x100 | 270x100x270x100 | 320x120x320x120 |
| Min. Slotting Space-Normal Knife (BxCxBxC) | 160x160x160x160 | 160x160x160x160 | 160x160x160x160 |
| Max. Slot Depth Size | 250 | 320 | 450 |
| Min. Box Height Size | 110 | 110 | 160 |
| Max. Die-Cutting Area | 850x1950 | 1150x2350 | 1530x2750 |
| Sheet Thickness | 1.5-11 | 1.5-11 | 1.5-11 |
| Thickness of Printing Plate | 7.2 | 7.2 | 7.2 |
| Main Working Power(KW) | 4 Colors Slotter Die-cutter | 90/69/47 | 105/76/54 | 126.5/95.5/65.5 |
| Stacker + Vibrator | 3+10 | 3+10 | 3+10 |
| Total Power(KW) | 4 Colors Slotter Die-cutter | 105/81.5/59.5 | 120/88.5/66.5 | 141/108/78 |
| Stacker + Vibrator | 3+10 | 3+10 | 3+10 |
| Dimension (mm) | 4 Colors Slotter Die-cutter | 6600x4950x2550 | 9900x5350x2650 | 9900x5750x2750 |
| Stacker | 6500x3500x3000 | 6500x3970x3000 | 6500x4440x3000 |
| Vibrator | 3200x3300x1100 | 3200x3700x1100 | 3200x4150x1100 |
| Mark: 0820 0924 1220 1226 1228 1424 1426 1630 1632 2036 can be
customized. |

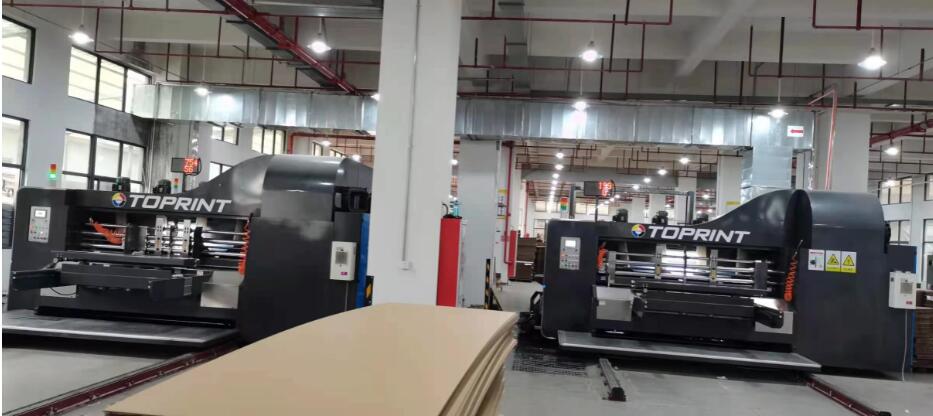

Rendering of The Product
