RS485 2%FS Digital Gas Flow Meter With Warning Function

    Buy cheap RS485 2%FS Digital Gas Flow Meter With Warning Function from wholesalers

    Buy cheap RS485 2%FS Digital Gas Flow Meter With Warning Function from wholesalers
    • Buy cheap RS485 2%FS Digital Gas Flow Meter With Warning Function from wholesalers
    • Buy cheap RS485 2%FS Digital Gas Flow Meter With Warning Function from wholesalers
    • Buy cheap RS485 2%FS Digital Gas Flow Meter With Warning Function from wholesalers
    • Buy cheap RS485 2%FS Digital Gas Flow Meter With Warning Function from wholesalers

    RS485 2%FS Digital Gas Flow Meter With Warning Function

    Ask Lasest Price
    Brand Name : Yunyi
    Price : USD$150--170/UNIT
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 Uint per week
    Delivery Time : 5-10working days
    • Product Details
    • Company Profile

    RS485 2%FS Digital Gas Flow Meter With Warning Function

    Product Description


    co2 gas flow meter mass air flow meter


    MF series flow sensor technology and intelligent electronic control technology, specially designed for ordinary small amount of gas flow measurement developed product. The sensor can directly measure gas mass flow rate, low pressure loss. Applicable to purify air or nitrogen gas flow measurement, can also be used for environmental monitoring instrument, such as air sampling and analysis instrument 9 gc spectrometer) DFS/DMF flow sensor, pipe diameter is 3 mm, low cost, small pressure loss, measurement range to five biggest SLMP, suitable for particle counter and analysis instruments, etc.


    co2 gas flow meter mass air flow meter application


    Applied to all kinds of gas flow testing and flow metering, suitable for air compressed air oxygen nitrogen dioxide and all kinds of inert gas, such as the instantaneous flow and cumulative flow measurement
    Product application: food industry mechanical and electrical industry tobacco industry analysis instrument in chemical industry and beverage glass industry scientific research colleges and universities of the pharmaceutical industry Agriculture, forestry and fisheries, and other fields



    Specification

    Name
    co2 gas flow meter mass air flow meter

    Measuring range
    0~10(DN6),0~25(DN6),0~200(DN12) L/Min(optional)

    Accuracy

    ± (2+0.5FS)%

    Repeatability

    0.50%

    Respond time

    ≤ 2sec
    Power supply

    4 AA battery or Power Adapter
    Power consumption
    ≤ 10mW
    Signal output
    RS485
    Display
    LCD
    Display unit
    instantaneous:SLPM(L/min);accumulation:NCM(m3)
    Working pressure
    ≤ 0.8MPa
    Function description
    password set;The total set and reset; warning function
    Working temperature
    -10 ~ +55℃
    Connecting joint
    NPT 1/4 (DN6) or NPT 1/2 (DN12)

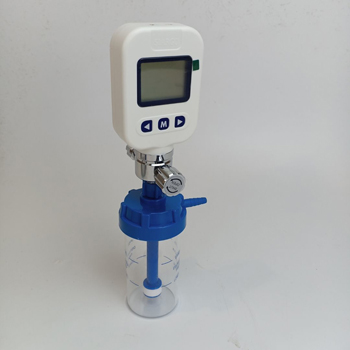

    Detailed Images



    FAQ

    Q: How long will you reply me?
    A: We will contact you as soon as possible but within 12 hours.

    Q: Can I get some samples?
    A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

    Q: How soon can you arrange your production?
    A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

    Q: What's delivery time?
    A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

    Q: How do you control your quality ?
    A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

    Q: What certificates do you have ?
    A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

    Q: Could I visit your factory?
    A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

    Q: What's your warranty terms?
    A: We offer 12 months warranty time.

    Q: Can you provide OEM & Customized service?
    A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you
