    Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration

    Ask Lasest Price
    Brand Name : OWO
    Model Number : OWM33BL
    Certification : CE, RoHs
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000PCS/Month
    Delivery Time : As confirmed
    • Product Details
    • Company Profile

    Smooth Speed Control Brushless DC Electric Motor With Good Dynamic Acceleration

    33mm brushless dc motor using for Medical Endoscope ,Remote Controlled Robot, Ultrasonic Apparatus


    The 33mm brushless motor has features of high power density, smooth speed control and good dynamic acceleration. It is used for the remote control robot, medical endoscope, and other equipment







    ◆GENERAL SPECIFICATIONS

    Winding typeStar
    Hall effect angle120 degree electrical angle
    Shaft run out0.025mm
    Radial play0.02mm@450g
    End play0.08mm@450g
    Max. radial force15N @ 10mm from the flange
    Max. axial force10N
    Insulation classClass B
    Dielectric strength500VDC for one minute
    Insulation resistance100MΩMin., 500VDC


    ◆ELECTRIC CONNECTION


    Lead No.Lead colorLead gaugeFunctionDescription
    1YellowUL1007 26AWGVccSupply voltage for hall sensors
    2BlueHall A
    3OrangeHall B
    4BrownHall C
    5WhiteGNDGround for hall sensors
    6GreenPhase U
    7RedPhase V
    8BlackPhase W



    ◆ELECTRICAL SPECIFICATIONS


    ModelOWM33BL38OWM33BL80
    Number of poles44
    Number of phase33
    Rated voltage (VDC)244824
    Rated speed (RPM)3000100007800
    Continuous stall torque (mN.m)264860
    Rated torque (mN.m)224050
    Rated power (W)74040
    Peak torque (mN.m)66350350
    Peak current (A)0.643.511
    Line to line resistance (ohms)14.22.30.86
    Line to line inductance (mH)71.450.55
    Torque constant (mNm/A)46.0939.1625.16
    Rotor inertia (g.cm2)7.9523.5523.55
    Body length (mm)388080
    Mass (Kg)0.0850.20.2

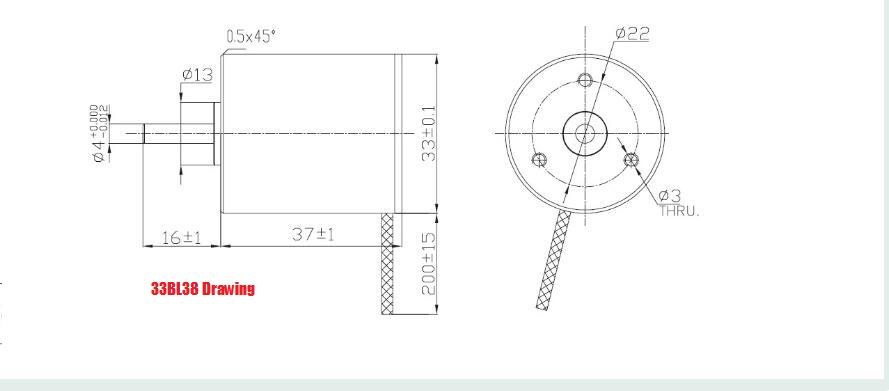

    DIMENSIONS:


    Related Names:

    Brushless Motor Machine for Medical Endoscope | Remote Controlled Robot Used Motor without Brush | Brushless Electric Device for Ultrasonic Apparatus
