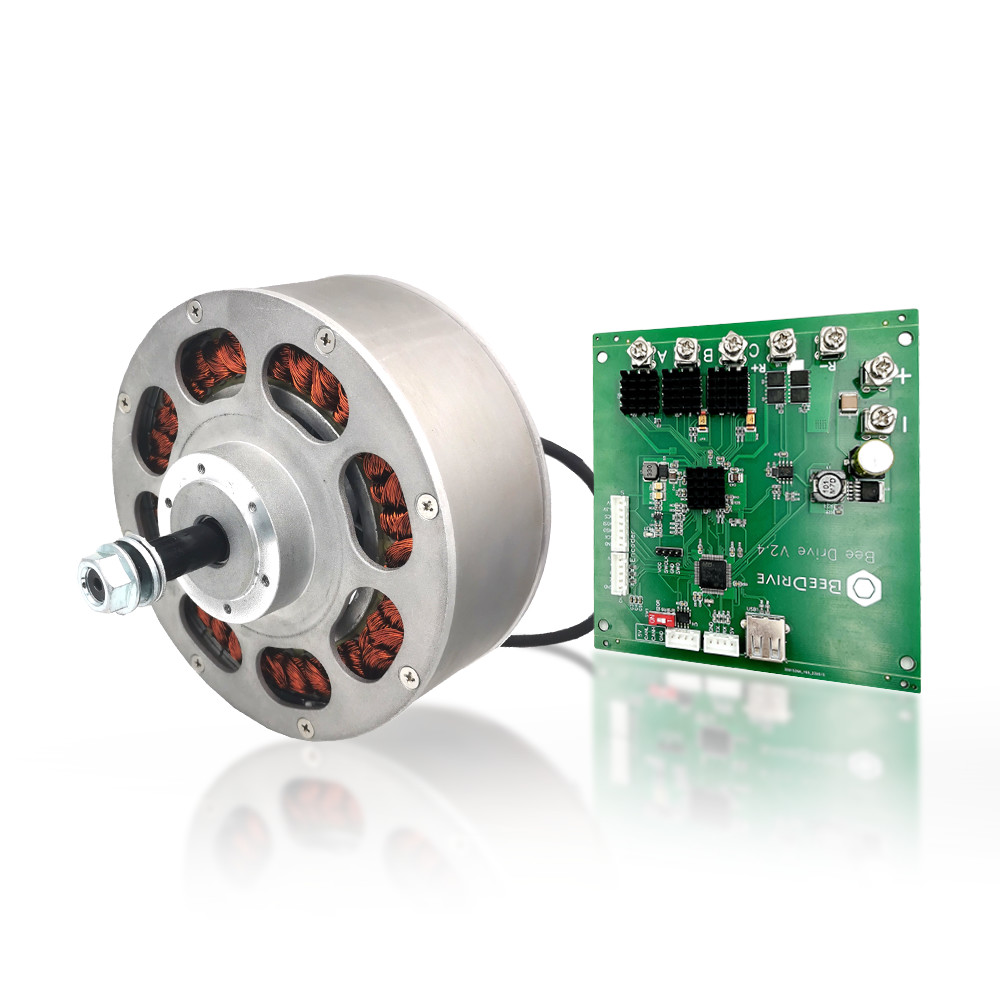

    6.5 Inch High Torque BLDC Servo Motor With Build In Encoder

    6.5Inch High Torque BLDC Servo Motor With build-in Encoder for rowing machine



    Motor performance parameter

    ItemMotor ModelHUB500
    1Rated voltage36-48V
    2Rated power500W
    3Max efficiency≥80%
    4MAX rotating speedcustomizable
    5No-load noise≤50dB
    6Max torque45Nm
    7Number of pole pair15
    8Encoder accuracy14
    9Waterproof Class
    10No-load current≤1A
    11Service temperature-10~55℃
    12Wheel tireanti-static tire

    Applications:

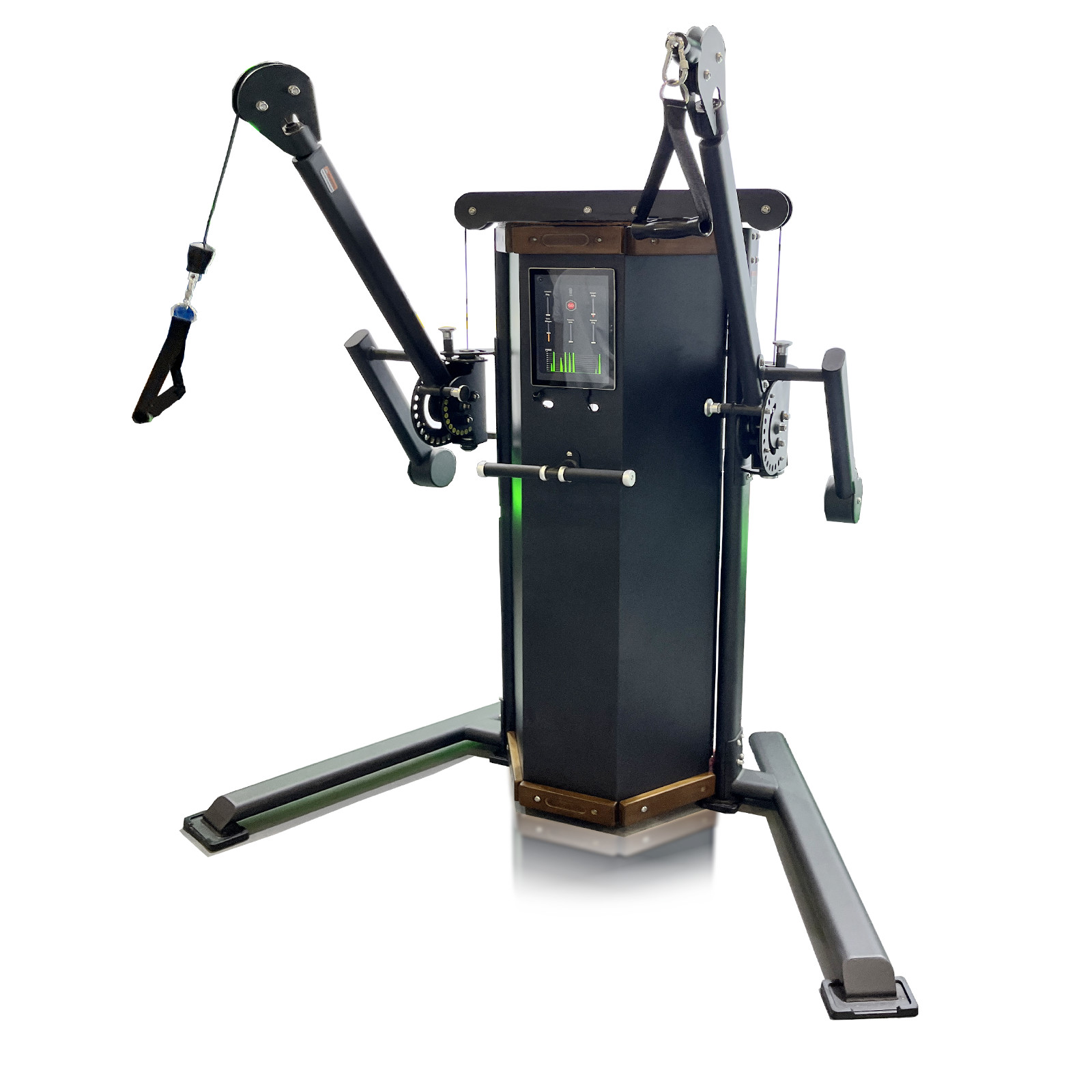

    1: rower machine

    2: rowing machine

    3: fitness machines



    Our hub servo motor advantage:

    • Self R & D, have own patent and great market competitiveness

    • Built-in high precision encoder 12-21 bits optional, also can be customized, electromagnetic brake, high load carrying etc
    • Simple structure, easy installation and high cost performance
    • High precision, high power density, low noise
    • The motor and the outer tyre are integrated, beautiful design
    • 4-15 inch optional, power: 50-2KW optional, accept OEM/OEM for all models

    Outline dimension
