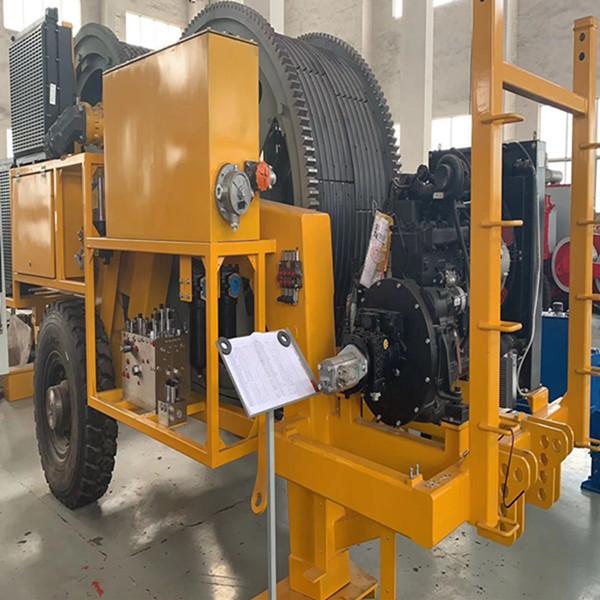

GL2x70 Yellow Color High Tensioner 14T Power line Stringing Equipment

GL2x70 Yellow Color High Tensioner 14T Power line Stringing Equipment

14T Power line Stringing Equipment Performance :

Max intermittent tension 2x70/1x140kN

Max continuous tension 2x65/1x130kN

Speed at max pull 2.5km/h

Max speed 5km/h

Tension at max speed 2x25/1x50kN

Max reverse pulling force 2x60/1x120kN

Max reverse pulling speed 5km/h

14T Power line Stringing Equipment Engine :

Diesel 77kw(103hp)

Cooling system water

Electrical system 24V

14T Power line Stringing Equipment Characteristics :

Bull-wheel diameter 1500mm

Max conductor diameter 40mm

Groove number 2×8

Total weight 10000kg

Overall dimension 5500x2300x2700mm

14T Power line Stringing Equipment Main Configuration :

Engine Cummins

Hydraulic pump GermanRexroth/Dnish Danfoss

Main motor German Rexroth/French Leduc

Speed reducer German Rexrothn

Hydraulic meter German WIKA

Operating handle German Rexroth

Configuration :

·2 hydraulic dynamometers

·Hydraulic oil cooling system

·2 digital meter counters

·2 digital speed meters

·Control instruments for hydraulic system and diesel engine

·Hydraulic front stabilizer ·Grounding connection point

·Hydraulic power pack to control up to 4 separated drum stands with hydraulic motor

Hydraulic Transmission :

·The machine can realize step less speed

·The machine is provided with tension presetting system

Additional Devices :

·Lighting system for the trailer

·Air brake system for the trailer(extra charge)

·4 hydraulic conductor clamps for drum change operations (extra charge)

·Digital speed and meter counter

Galaxy power industry limited

Galaxy power industry limited was established in 2018, a high-tech enterprise in China, We are specializing in R & D, manufacturing and sales of kinds of transmission line stringing equipment and tools such as hydraulic puller, tensioner, underground cable conductor pulleys, anti-twisting galvanized steel rope as well as providing accessories and technical service for customer. Galaxy has developed as one of the largest stringing equipment and tools manufacturer in China which supply more than 200 varieties kinds of goods now.

Our company has a number of senior engineers, intermediate engineers and Italian technical support, has a good prospect for development, the company in line with the practical and willing to work, keep improving the guidelines, really do Chinese quality.

The company's products have a year of quality assurance, and efficient and timely after-sales

Packing in wooden case according to customer's requirement
