    150W/K Enclosure Heat Exchanger

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : HE06-150SEH/01
    Certification : ISO9001, CE, 3C, FCC, TLC
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 14,000 sets per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    150W/K Enclosure Heat Exchanger


    48v DC Outdoor Telecom Cabinet Industrial Heat Pipe Enclosure Heat Exchanger 150W/K


    1. Specifications

    (1) Technical Parameters


    Model No.HE06-150SEH/01
    Environmental Performanceworking environmental temperature-20°C ~ 55°C
    storage working temperature-40°C ~ 70°C
    working humidity≤95%
    Thermal Performancerated heat exchange capacity150W/K
    heating input power300/500W (optional)
    Electrical Performancerated input current2.5A
    rated input power120W
    input voltageDC48V
    ReliabilityMTBF70000 hours
    Noise64dB
    IP GradeIP55
    Weight18kg

    (2) Dimension Diagram: 430×176×700 mm (W×D×H)



    Size

    Specs

    ModelABCDEFGHIJK
    150W/KHE06-150SEH/01 (CW043)300401450600672700133176649379430

    2. Description


    Cabinet heat exchanger is a device that utilizes the natural cool resources to exchange heat between hot inside and cool outside of cabinet with limited power consumption.


    When there is large temperature difference, the device will effectively exchange heat between hot inside and cool outside, which make the cabinet be an enclosed system with temperature control, and equipment inside can work normally.


    3. Application


    The cabinet heat exchanger is widely used for outdoor telecom cabinet, outdoor battery cabinet, outdoor UPS cabinet, outdoor power cabinet, electric cabinet and industry cabinet,etc.

    4. Features


    • Strong adaptability
    • High intelligence
    • High precision
    • High reliability
    • The heat exchange capacity can be set according to need
    • Low noise
    • Low energy consumption
    • With 4 way switching value detection
    • With 1 way room air conditioner control
    • Wide input voltage range: DC36 - 65V
    • With dry contact alarm output
    • Dust proof and water proof

    5. System Principle Diagram


    6. Electrical Wiring Diagram


    Wiring Ports:

    0V -48V: power supply input (voltage input: DC36 - 65V)

    A+ B- SGND: RS485 communication interface

    AL1 AL2: general alarm output

    F+ F- : auxiliary direct ventilation control output (output voltage: DC48V)

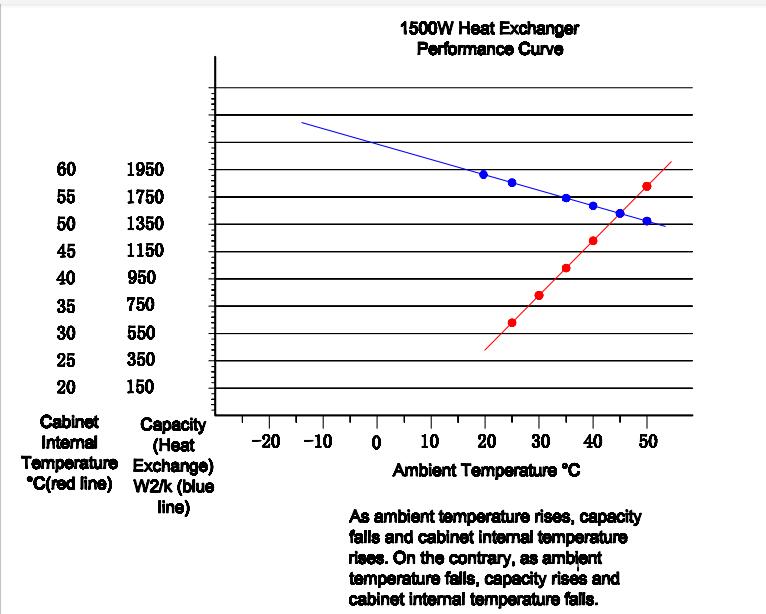

    7. Performance Curve


    8. Packing and Shipping



    Our Delivery Agent

    The goods can be shipped by sea, by air, by courier, by land, by train, etc.
    Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
