    LCD Control 650W IP55 Enclosure Heat Exchanger

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : HE06-65SEH/01/T
    Certification : ISO9001, CE, 3C, FCC, TLC
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 14,000 sets per month
    Delivery Time : 7-10 working days
    • Product Details
    • Company Profile

    LCD Control 650W IP55 Enclosure Heat Exchanger


    Energy Saving Top Mount DC48V 650W Enclosure Heat Exchanger With LCD Control Board Remote Monitoring





    1. Application

    The cabinet heat exchanger is widely used for outdoor telecom cabinet, outdoor battery cabinet, outdoor UPS cabinet, outdoor power cabinet, electric cabinet and industry cabinet,etc.

    2. Description
    Heat Pipe Heat Exchanger uses refrigerant phase-change heat transfer principle to conduct passive cooling to cabinet equipment compartment. It makes full use of temperature difference between cabinet internal environment and external environment, effectively introduce the external cold air, fast move heat inside the station to the outer environment, to realize cabinet cooling. The energy efficiency ratio of the heat exchanger is above 8~9, with high efficiency and energy saving.

    3. Features


    (1) Independent energy saving control technology greatly reduces working energy consumption;
    (2) LCD control board provides easy installation and maintenance;
    (3) Perfect monitoring function, effective monitoring and management on heat exchanger operation;
    (4) Integrated design, easy for installation and maintenance;
    (5) With RS485 remote monitoring interface, fault detection and alarm can be transmitted to monitoring center through controller.
    (6) Protection Level: IP55, anti- corrosion, long service life;
    (7) Using DC high efficient fans, greatly lower the product noise, environment friendly;
    (8) Good energy saving performance, short investment payback period;

    4. Technical Data

    ModelHE06-65SEH/01/T
    Performance Parameters
    Rated Voltage (V)DC48V
    Rated Current (A)2.05
    Heat Exchange Capacity (W)650
    Heater Power (W)300
    Rated Power (W)99
    Circulation Air Volume (m3/h)450
    Noise (dB(A))55
    liquidMixed Liquid
    Working Temperature-20°C ~ 55°C
    Mechanical Parameters
    Installation ModeTop Installed
    Height (mm)180
    Rated Power (W)Width (mm)482.6
    Depth (mm)500
    Controller Parameters
    Working Voltage (V)DC36~72
    Working Temperature and Humidity-20°C ~ +80°C, <90%RH
    Temperature Control Accuracy (°C)0.1
    Power Consumption (W)5
    Communication ModeDry contact,RS485, RS232, GPRS

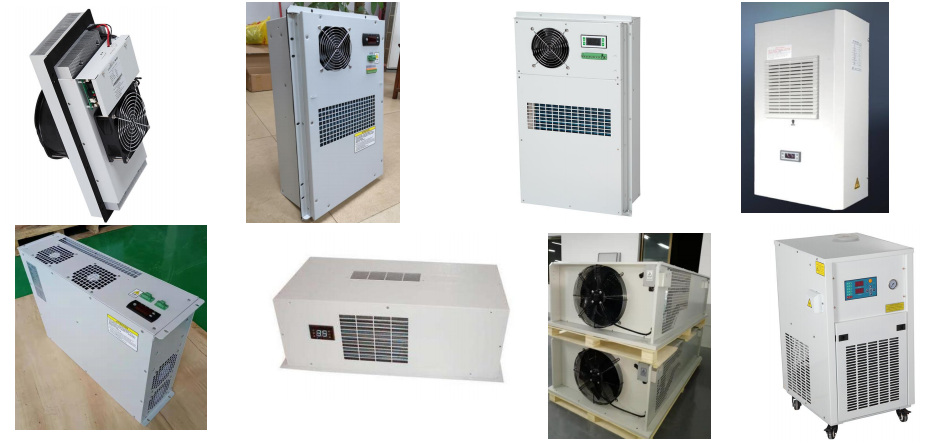

    5. Product Picture





    6. Other Cooling Unit
