    Alloys 110 M 1.5mpa Soil Testing Drilling Rig

    Ask Lasest Price
    Brand Name : JINZHOU SHITAN
    Model Number : ST-100
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 2000 sets per year
    Delivery Time : 7-12 days
    • Product Details
    • Company Profile

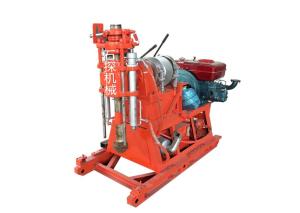

    Alloys 110 M 1.5mpa Soil Testing Drilling Rig

    On Sale Soil Testing Drilling Rig Machine for Geological Investigation


    Product Application:


    Heavy Duty Soil Boring Machine , Geotechnical Drilling Equipment

    1. This drilling rig is suitable for drilling projects such as water wells, census exploration, geophysical exploration, road and building exploration, and blasting holes.


    2. Alloys, steel sand and steel particles can be used for drilling according to the different layers.


    3. It can drill 2-9 grade sand clay and bedrock layers.


    4. The rated drilling depth is 100m and the deepest shall not exceed 120m. The rated opening diameter is 110mm, the maximum opening diameter is 130mm, and the final hole diameter is 75mm. The drilling depth depends on the formation.


    Product Parameter:


    Drilling depth110 m
    Maximum open hole diameter220mm
    End hole diameter75mm
    Drilling pipe diameter50mm 42mm
    Drilling angle90
    Drilling rig weight (exclude diesel engine)610kg
    External dimensions2.1*0.9*1.3m
    Spindle
    Spindle speed130/300/480/730/830/1045 r/min
    Spindle stroke450mm
    Windlass
    Lifting power (single rope)1600kg
    Lifting speed (single rope)1.06/0.67/0.32 m/s
    Wire-rope diameter13mm
    Windlass capacity in terms of rope length35m
    Brake belts width50mm
    Mud pump
    TypeHorizontal single cylinder double acting
    Displacement (diesel engine/electric motor)170L/min
    Maximum pressure1.5mpa
    Working pressure0.7mpa
    Power
    Diesel engineS1100
    Electric motorY160M-4 10KW

    Rig Features


    1 hydraulic automatic feed mechanism, improve drilling efficiency, reduce manual labor workers.


    2. Ball holding mechanism instead of using the chuck, can implement non-stop down the lever, easy to operate, safe and reliable.


    3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.


    4 The handle centralized, easy to operate.


    5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas.
