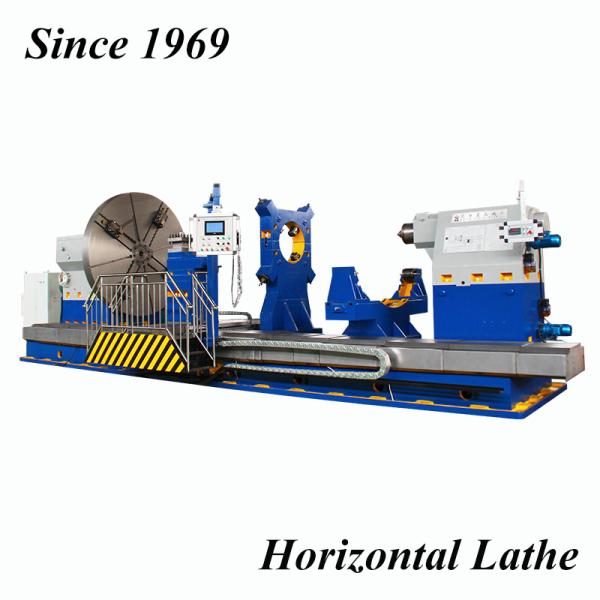

Cnc 60T Workpiece Turning Shaft Horizontal Lathe Machine

Heavy Duty Horizontal Lathe, Lathe Machine, Roll Lathe, CNC Lathe Machine tool for turning roll, cylinder, shaft, pipe, propeller, flange, tyre mold

(Conventional Lathe, CNC control lathe , both are Available)
For Turning Steel Roller,Shaft,Cylinders, Oil Pipe, Marine Propeller Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,Flange,etc

Δ Machine Introduction

1. This series horizontal lathe machine can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What’s more, it can also realize the constant speed cutting line.

2. This machine adopts FOUR guide rails with high rigidity and stability. We adopts pasting plastic structure between sliding plate and machine bed guide. Besides, this guide rail is equipped with elescopic steel metal cover to prevent machining chips into the guide rail.

3. The Main Transmission is driven by the DC variable frequency motor with mechanical 3 speeds to realize stepless speed range of spindle.

4. The spindle adopts high precision double rows cylindrical roller bearings with adjustable radial clearance. Through optimized design, the larger spindle diameter and the best support span improve the rotation accuracy of spinlde and dynamtic and static strength.

5. The horizontal structure of cutting tool carriage adopts T-Type screw, and the longitudinal adopts high precision double teeth rod clearance structure to improve the transmission accuracy.

6. The tailstock is a kind of overall box structure. The core shaft of sleeve adopts high precision double rows cylindrical roller bearings with adjustable radial clearance, so that the tailstock has high stiffness. The movement of tailstock and sleeve are electrical control with automatic clamping and release.

7. According to customer’s special request, this kind of lathe machine, heavy duty horizontal lathe, cnc lathe, cnc machine tool, roll lathe, flange turning lathe can be also installed double cutting tool carriages, milling and boring devices. Grinding wheel device,spindle indexing and tool setting device

8. The main drive and feed transmission of this series heavy duty horizontal lathe adopts separate structures. This is a kind of heavy duty horizontal lathe with PLC system.

Δ Features of our company in the area and industry of making horizontal lathe machine, heavy duty horizontal lathe, lathe machine, roll turning lathe, CNC Lathe Machine

1. 50 years experience in designing and making horizontal lathe machine, lathe machine, roll turning lathe, pipe lathe, cnc lathe machine , cnc machine tool.

2. we have our own foundry which can control the quality very well.

3. professional machining and inspection equipments for making heavy duty lathe, roll turning lathe, horizontal lathe machine, cnc lathe.

4. 4 guide rail heavy duty guide rail with 2000 mm width with high rigidity, stability and accuracy.

Application: This series CNC horizontal lathe , lathe machine, roll turning lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. It has both turning and Grinding functions that can finish machining the part one time, which saves clamping times and improve the working efficiency for customers.

Δ 3D DRAWINGS of Heavy Duty Horizontal Lathe, Lathe Machine, heavy duty lathe machine, CNC Lathe Machine Tool, cylinder lathe, shaft turning lathe. Flange turning lathe, facing cnc lathe.

Δ Technical Parameters of heavy duty lathe machine, horizontal lathe, lathe machine, roll turning lathe, cylinder lathe, flange turning lathe, facing lathe, cnc lathe, cnc lathe machine, cnc machine tool

Remarks of lathe machine, heavy duty lathe, cnc lathe, lathe machine, horizontal lathe machine, roll lathe, pipe threading lathe, flange turning lathe, facing lathe: The above heavy duty horizontal lathe, lathe machine, cnc lathe machine, cnc machine tool, roll turning lathe, flange turning lathe, vertical cnc lathe are the standard configurations, we are specialized in designing and making customized lathe for over 50 years experience. If you have special request, please let us know. Or you can tell us the Max.Diameter, Length and Weight of work-piece, we can recommend best proper lathe or redesign for you.

Δ CERTIFICATE of lathe machine : EAC Certificate, CE Certificate, ISO9001, SGS, BV

Δ Package and Transportation

Vaccum Bag + Woode Box Package

For more details, please feel free to contact me by email annasun#ntmt.com.cn

Tap: heavy duty horizontal lathe, lathe machine, cnc lathe, horizontal lathe machine, cnc machine tool, roll turning lathe, facing lathe, flange turning lathe, pipe threading lathe

Qingdao North Torch Machine Tool Co.,Ltd was established in the 1969. It originally belonged to Liuting Airport Military Enterprise of North China Sea Fleet Aviation (Aviation Machinery Plant), and it is primarily responsible for aircraft maintenance, spare parts processing, middle and small sized machinery manufacturing, etc. In accordance with the document issued in 1999 by central military commission and the state council, the company was changed from military enterprise into a private company, and developed continuously.

Facing Lathe, Flange Lathe, Horizontal Lathe Machine,CNC Heavy-duty horizontal lathe, Roll Turning Lathe, Propeller turning lathe, Conventional Lathe, CNC End-Face lathe, automobile wheel hub lathe, large floor-type lathe , CNC Drilling Lathe Machine and CNC milling Lathe machine are the leading products of the company. These machines are widely applied to the energy & transport, mining &metallurgy, railways & shipbuilding, pipe molding, automobile parts, wind power chemical industry and other machinery manufacturing industries.

We provide the perfect CAD/CAM information processing and 3D design software, combined with domestic higher-educational institutions to form a science and technology association. We averagely launch more than 5 high technical patent products annually.

The company has passed ISO9001 international quality management system certification, CE Certificate, EAC Certificate, BV Certificate ,etc and become one of the 100 progressive growth enterprise supported by the Qingdao Government. It is also an enterprise supported by the national innovation funds. As a key enterprise in Shandong province, we are the first enterprise that researched and manufactured the large floor-type lathe series.

Our products have been exported to Georgia, Russia, India, Iran, Panama,Colombia,Brazil, Indonesia, Australia, Mexico, America, France, Iran, Chile, Norway, Thailand, Pakistan, Argentina and etc. Due to the excellent and stable quality with bottom price and professional after-sale service make us separate from other competitors and win a good reputation from domestic and abroad customers.

With the concept of “diversity and pursuit of excellence”, we aim to offer superior products and service to our customers.

Tag: China Professional Lathe Manufacturer, Lathe Machine, Horizontal lathe, CNC lathe, Pipe Lathe, Roll Turning lathe, Vertical Lathe.
