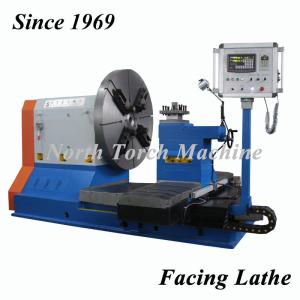

    Low Noise Horizontal Lathe Machine , Cnc Metal Lathe Turning Metal Pump Part

    Ask Lasest Price
    Brand Name : NTM or customized Horizontal Lathe is also available
    Model Number : CK64160
    Certification : CE, ISO9001, BV, SGS, EAC, etc
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 200 sets per one year
    Delivery Time : 4 months
    • Product Details
    • Company Profile

    Low Noise Horizontal Lathe Machine , Cnc Metal Lathe Turning Metal Pump Part

    High Quality Horizontal Lathe Machine for turning Metal Pump Part


    1. Application of Horizontal Lathe: Professionally used for can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, cylinders, shaft, etc but also the external,internal cylindrical , conical, spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body.


    We also have professional machining equipments such as, Gantry CNC Milling Machine, Gantry CNC Grinding Machine, Large CNC Boring Machine, etc. We have 12 meter long gantry grinding machine to finish precision grinding for machine guide rails. All of our gears are ground by professional equipment to ensure its high precision.


    2. OUR ADVANTAGES & FEATURES about Horizontal LATHE Machine:


    4 guide rails with telescopic steel cover of lathe machine with high rigidity, stability and accuracy after ground by our 12 meters big gantry grinding machine


    We have our own annealling furnace to do surface treatment of QUENCHING and HARDENING.


    Zero backlash with ball screw.


    Rough & finish machining is achieved in the cnc lathe machine with SIEMENS or FANUC cnc control system


    The operation panel is PLC Control with our special design which obtained national patent, the operation is easy, like CNC but cheaper and easier than CNC Control.


    Exported Countries :

    Russia, Georgia, Thailand, Azerbaijan, Ethiopia, Argentina, Australia, Turkey, Italy, Norway, India, Iran, Inodesia, Brazil, Panama, Colombia, etc


    3. Technical Parameters of Horizontal lathe Machine


    Specifications of Horizontal Lathe Machine
    NameUnitCK64125CK64160CK61200CK64250CK64300
    Swing Diameter over Machine Bedmmφ1250mmφ1600mmφ2000mmφ2500mmφ3000
    Chuck Diametermmφ1000mmφ1250mmφ1600mmφ2000mmφ2500mm
    Chuck-jaw seat lengthmmEmbeddedEmbedded500mm500mm500mm
    Work-piece Lengthmm500mm750mm750mm1000mm1000mm
    Work-piece WeightT2T2T3T3T5T
    Spindle Diametermmφ190mmφ200mmφ220mmφ220mmφ260mm
    Spindle Speedr/min10-200 r/min4-160 r/min4-160 r/min3-106 r/min3-106 r/min
    X Axis Strokemm625mm800mm`1000mm1250mm1500mm
    Z Axis Strokemm500mm750mm1000mm1000mm1000mm
    X Axis Rapid Feed Speedmm/min2500mm/min2500mm/min2500mm/min2000mm/min2000mm/min
    Z Axis Rapid Feed Speedmm/min2000mm/min2000mm/min2000mm/min2000mm/min2000mm/min
    Cutting Tool Carriage Size 240*240280*280300*300300*300300*300
    Cutting Tool Shank Sizemm32*32mm40*40mm40*40mm40*40mm40*40mm
    Feed Control Servo MotorServo MotorServo MotorServo MotorServo Motor
    Motor Parameters
    Main Motor PowerKW15KW18.5KW18.5KW22KW37KW
    Feed Motor of Z AxisKW2.3KW2.3KW2.3KW2.3KW2.3KW
    Feed Motor of X AxisKW2.3KW5.5KW5.5KW5.5KW5.5KW
    Lubrication Motor PowerKW0.37KW0.37KW0.37KW0.55KW0.55KW
    Machine Accuracy
    Cylindricitymm0.03/300mm0.03/300mm0.03/300mm0.03/300mm0.03/300mm
    Flatnessmm0.03/300mm0.03/300mm0.03/300mm0.03/300mm0.03/300mm
    RoughnessRaRa3.2Ra3.2Ra3.2Ra3.2Ra3.2
    Machine Dimensionsmm3180*1910*18703940*1980*19004190*2670*24504250*2770*28004400*3300*3300
    Machine WeightT6T9.5T11T12.5T15T



    Remarks: The above technical parameters of Horizontal turning lathe is the standard specifications, we are also specialized in manufacutring customized lathe.


    Thank you for attention.
