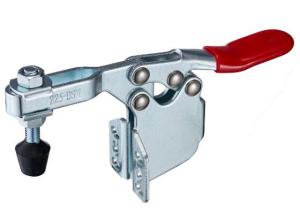

Side Mount Horizontal Handle Toggle Clamp Use on Clamping Metal
Plate GH-225-DSM
Horizontal Hold Down Handle Toggle Clamp GH-225-DSM
Features:
Quick release, big holding capacity
Application:
Welding, machining, checking fixture, assembly fixture,
woodholding, metal holding, workholding clamps
| Weight (g) | Holding Capacity (kg) | Bar Opens (º) | Handle Opens (º) | Spindle Supplied |
| 315 | 230 | 90 | 65 | GH-SA-053008 |
Automobile Industry
1. Welding of various vehicle frames and accessories (small sheet
metal parts) is used as positioning bolts and fixtures for welding
jigs.
Main application models: 225-DSM,
702-C,702-D,702-K,101-J,10247,12265,304-E,304-H,303-E etc.
2. Welding inspection of various vehicle frames and accessories
(small sheet metal parts) is used as positioning bolts and fixtures
for inspecting jigs.
Main application models: 12135,12137,304-C,302-F etc.
3. Stamping of all kinds of vehicle frames, accessories (small
sheet metal parts) and sheet metal door panel parts is used as
positioning bolts and fixtures for stamping parts inspecting jigs.
Main application models: 12130,12135,11412,302-F,36020 etc.
4. Welding and welding inspection of various door panels are used
as positioning bolts and fixtures for welding and testing molds.
Main application models:
702-C,702-D,101-E,10247,12130,12135,12137,304-E etc.
5. Welding of various automobile roof and side windows is used as
fixtures for welding fittings.
Main application models: 11412,203-F,21502-B etc.
6. Welding of various car seats is used as positioning bolts and
fixtures for welding fittings.
Main application models: 11412,12265,102-B,36020,303-E etc.
7. The production of molded foams for luxury car seats is used as
fixtures for foaming molds.
Main application models: 702-D,40341,304-H, etc.
8. The production of various automobile (motorcycle) mufflers is
used as fixtures for welding jigs.
Main application models:
11412,10247,12305,22175,25382,36020,303-E,305-H etc.
9. The production of various automobile (motorcycle) carburetors is
used as fixtures for jigs and fixtures for drilling machines.
Main application models: 201-B,21382,21383,21384 etc.
10. The production of various automobile (motorcycle) wiring
harness and electrical appliances is used as fixtures for testing
jigs. Some of them are also used for assembling fixtures during
assembly.
Main application models: 201,201-A,201-B,101-A etc.
11. Production of various automobile steering wheels:
1) used as fixtures for welding jigs,
Main application models: 225-DSM, 201,201-A,201-B,101-B.
2) used as end caps for foaming molds.
Main application models: 304,305 series.
12. Production of various automobile interior accessories:
1) Dashboards, etc. (using PP, ABS materials); used as clamping
fixtures for "casting molds";
Main application models: 431,40341.
2) Dashboards, etc. (using PU materials); used as clamping fixtures
for "foaming molds"; and
Main application models: 40341,10448,20448,702-D etc.
3) Inspection of interior accessories is used as positioning and
locking fixtures for testing jigs;
Main application models: 101-D,12130,12135,302-F etc.
4) Lining (with leather, wool cloth materials) is used as fixing
fixtures for fixing upper and lower molds on the press.
Main application models: 40370,40380.
13. The rivets and welds on the chassis of small cars such as
minibuses, jeeps and sedans are used as positioning and locking
fixtures for riveting and welding jigs.
Main application models: 702-C,702-D,702-K,303-E,304-H etc.
14. Production of luxurious minibus and bus bodies:
1) Body keel welding is used as fixtures for welding jigs.
Main application models: 702-D,10247,12265,11412 etc.
2) For welding of the outer metal plate of the car body, manual
toggle clamps are used as fixtures.
Main application models: F clamps and Toggle Pliers.
Electronics Industry
1. All electronic products- such as televisions, radios, DVD,
electronic doorbells, and computers, etc., are all with circuit
boards which are composed of PCB boards and electronic components
inserted and attached to them. There are two ways to insert and
attach electronic components to PCB boards:
(1) Automatic, SMT using products, AI automatic equipment to insert
and attach electronic components; this method does not require a
manual toggle clamp.
(2) Assembly line, divided into the card slot type and ring type. A
manual toggle clamp is generally used in the ring-type assembly
line of inserting and attaching electronic components on PCB
boards, which is used to fix PCB boards. No manual toggle clamp is
needed in the card slot type production line.
Main application models:
101-A,20400,201,201-A,20100,22005,20800,20300,22100 etc.
2. No matter which way the circuit board is manufactured in point
"5-1," manual toggle clamps are used on "test jigs" for "online
testing" and "testing line."
Main application models: 101-A,201,10250,10250-U,304,305 series
etc.
3. In the production of various electronic products, equipment, and
electrical wiring harness for household appliances, manual toggle
clamps are used in the inspection process, and in some factories,
manual toggle clamps are used in the assembly process for "test
fixtures" and " assembly fixtures."
Main application models: 13005,101-A,13009,201,201-A,20800,36070
etc.
4. For the production of electronic components such as filters and
amplifiers, manual toggle clamps are used on test equipment and
test jigs.
Main application models: 225-DSM,
101-A,102-B,11401,12050-U,201-B,20752-B,22100 etc.
5. A manual toggle clamp is used as fittings in electronic
production equipment, such as crest welders, reflow soldering
machines, DDC machines, reflow ovens, stretching machines, and
screen printing machines.
Main application models: 101-A,102-B,40341,80325 etc.

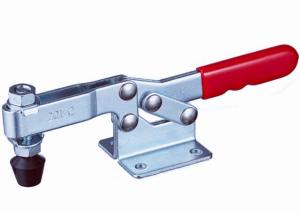

Horizontal Toggle Clamp
When the handle is in the horizontal position, this toggle clamp is
in the locked position. As the handle moves towards the table, its
securing arm locks into place. Commonly, this is used when there
are height limitations to machinery. Plus, don’t forget to mount it
to a table.
