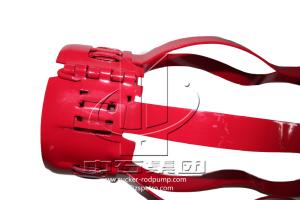

    Double Crest Hinged Non Welded Casing Centralizer

    Double Crest Hinged Non-Welded Casing Centralizer


    The products are all stamping braided structure, no welding defects.It is a new product to replace the old welded casing centralizer, and can be widely used in the casing running operation of vertical Wells or high deviated Wells

    Features
    • The bow elastic casing centralizer is composed of a hoop, a bow spring plate and a pin.
    • The whole centralizer has no welding, no rivets, strong structure, high strength,small deformation,reliable locking and other advantages.
    • The centralizer of each specification is composed of the corresponding bow spring plate.
    • The material of the bow spring sheet is 65Mn, after the forming heat treatment, all meet the standard requirements.

    Specification
    ModelMax.Out-DiaHooping In-Dia.Total lengthAmount of spring
    (in)(mm)(mm)(mm)(mm)
    5-1/2" x 8-1/2"225±5142-148650±505
    7" x 9-5/8"255±5181-186650±506
    7" x 8-1/2"235±5181-186650±506
    8-5/8 x 12-1/4"330±5223-228650±508
    9-5/8 x 12-1/4"330±5250-255650±508
    10-3/4 x 12-1/4"330±5274-276650±509
    13-3/8"x17-1/2"450±5342-347650±5011
    18-5/8"x24"610±5475-477600±5012
    20"x26"660±5509-511600±5012

    Quality Double Crest Hinged Non Welded Casing Centralizer for sale
