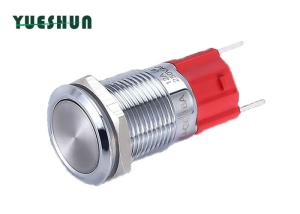

12V LED Light Momentary Start 18A Self Locking Push Button Switch

    Buy cheap 12V LED Light Momentary Start 18A Self Locking Push Button Switch from wholesalers

    Buy cheap 12V LED Light Momentary Start 18A Self Locking Push Button Switch from wholesalers
    • Buy cheap 12V LED Light Momentary Start 18A Self Locking Push Button Switch from wholesalers
    • Buy cheap 12V LED Light Momentary Start 18A Self Locking Push Button Switch from wholesalers

    12V LED Light Momentary Start 18A Self Locking Push Button Switch

    Ask Lasest Price
    Brand Name : YUESHUN
    Model Number : GQ22AF-10E
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : T/T to our company account or by paypal
    Supply Ability : 5000Pcs/Day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    12V LED Light Momentary Start 18A Self Locking Push Button Switch

    Blue Green 12V LED light 18A High current metal Push button switch 22mm self-lock Momentary start switches

    Quick details:
    - High load current metal push button,Maximum current is 18A.We have passed the test.
    - A variety of mounting apertures are available,16mm 19mm 22mm & 25mm.
    - Widely Used In Communication Device, Networking, Automatic, the push button has good press performance and easy to assemble. There are screws or soldring terminals for your choice. We also supply harness tail for easy assemble acoording to your requirements.
    - Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on); Press the button again to make it pop upand disconnect the power (light off).
    - Momentary button: Press the power on, release the hand power on of off, the button spring to original position.

    Product Description
    Product name10A Large current Metal push button switch
    Produstion TypeGQ22AF-10E/SGQ22AF-10E/N
    Body materialStainless steelChrome plated brasss
    Button materialStainless steelStainless steel
    Base materialPBTPBT
    Mounting hole size22mm
    Max. Current18A
    Max. Voltage250V AC
    Contact structure1NO 1NC or 2NO or 2NC
    Operation typeMomentary or Latching
    Head shapeFlat Round Head
    Emitting TypeRing Logo illuminated
    Lamp colorRed Green Blue Yellow White
    Lamp voltage3V 6V 12V 24V 36V 48V 110V 220V 380V

    Product Parameter
    Mechanical lifeMore than 1,000,000 times
    Electrical lifeore than 200,000 times
    Operating temperature-25℃- +55℃
    Operating humidity45-82%RH
    Operating distanceAbout 2mm
    Operating pressureAbout 3N
    Protection levelIP67
    Insulation resistanceMore than 1000MΩ
    Contact resistance≤ 50mΩ


    Size

    About us
    Our company is a professional company engaged in the design, development, production, sales and service of button switch, focusing on the innovation and quality of button switch.
    The leading products are 8mm, 10mm, 12mm, 16mm, 19mm, 22mm, 25mm, 28mm, 30mm, 40mm series button switches and indicators.The types of luminescence with lights are: ring luminescence, single point luminescence, power symbol luminescence, ring home power symbol luminescence, other customized luminescence lights, open type: self-locking, self-duplexing.Waterproof grade can be large leather IP67 class.The highest explosion-proof performance can reach IK10 level.
    Our products are affordable, quality assurance, is your best choice.
    The company can develop and customize products according to customer requirements.


    About the packing
    1,We use foam boxes to reduce accidents in transit and protect our products from damage.
    2,We have 50 pieces/box and 25 pieces/box of packaging, using foam box to protect each product, effectively avoid the damage caused by direct friction between products.
    3,Each of our products will go through strict testing before they leave the factory to ensure that the products reach the customer is in good condition.If you have any problem with the products you receive, please contact us immediately and we will deal with it properly.
