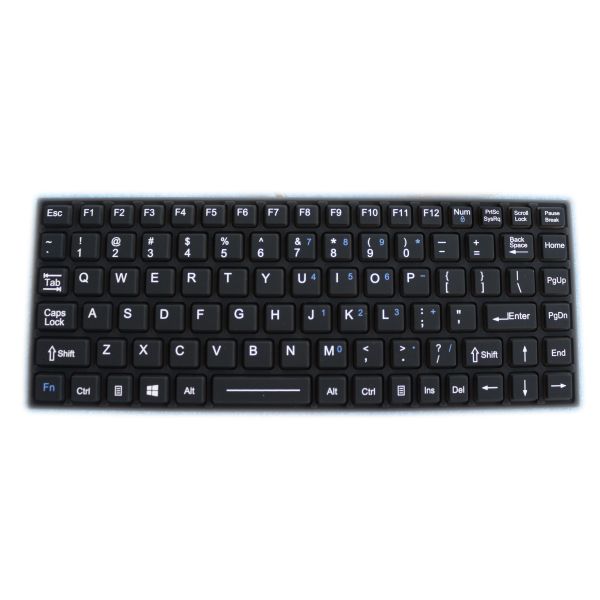

Rugged Laptop Military 30mA Silicone Rubber Keyboard

Industrial or military silicone rubber keyboard designed for rugged laptop

DESCRIPTION: 89 keys IP67 dynamic waterproof military silicone keyboard , with carbon-on-gold key switch 12 FN keys (F1, F2...F11, F12) on top line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounting, with industrial backlight included.

Dimensions: 284.00mm x 109.00mm x 12.6mm (L x W x H )

MAIN FEATURES:
Keyboard provides rugged, compact design, rugged construction for reliable functionality.
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquid, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special durable-coating for excellent mechanical and chemical resistance.
With firm tactile key feel, key travel 1.50mm key travel.

Actuation Force: Square key: 1.2N+/-0.1N Rectangular key: 2N+/-0.1N
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Low-profile keys for easy cleaning
Key life: 5 millions

MECHANICAL DATA
Key: 89 keys
Key top style: Protuberant rectangular keys with tactile feeling.
More than Lifetime 5 million strokes
G.W.: 0.80KGs
Dimensions: 284.00mm x 109.00mm x 12.6mm (L x W x H )

ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA (non-backlight) , 300mA (with backlight on)
Lifespan> 5 years

Switch Contact Material: Carbon-on-Gold key switch technology.
Interface: PS2, USB available.

Cable length: Standard 2.0m, customized length available.

OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃

Saline mist:96h, IEC60512-6

Damp heat test at +40℃: 21 days, IEC 60512-6

Dry heat test at +85℃: 10 days, IEC 60512-6

Operating RH: 100%

Atmospheric pressure: 60-106Kpa

Shock: 3 x 11 ms pulses of 50g on each of 3 axes

PRINTED CIRCUIT BOARD: 94 V-0 SILICONE OVERLAY: 94 HB INTERFACE CABLE: 94 HB

RELIABILITY
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
