Hydraulic Core Drilling Machine Geological Exploration Borehole
Diamond Core Drilling Rig

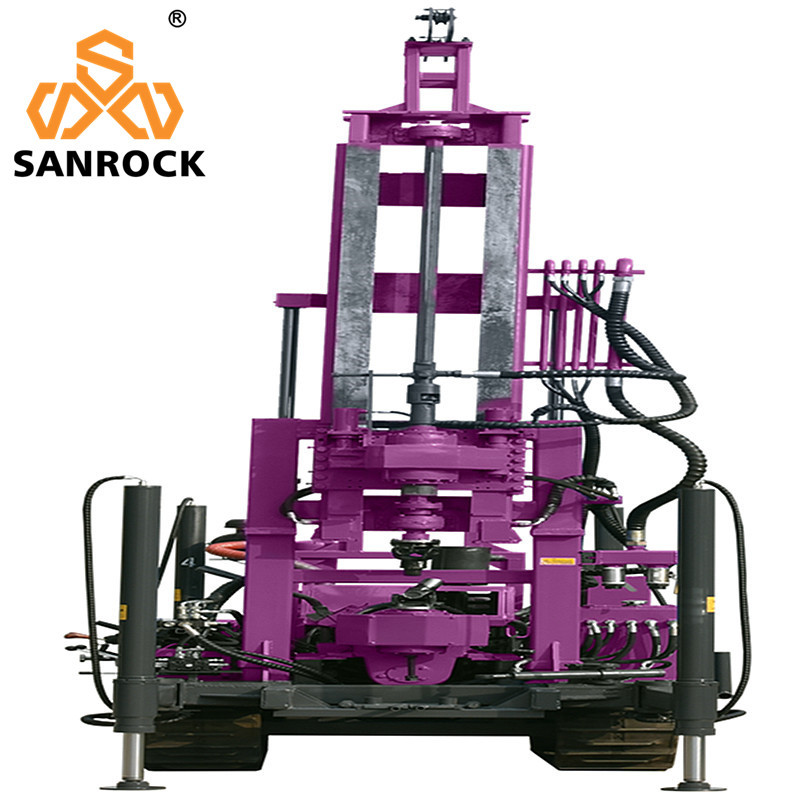

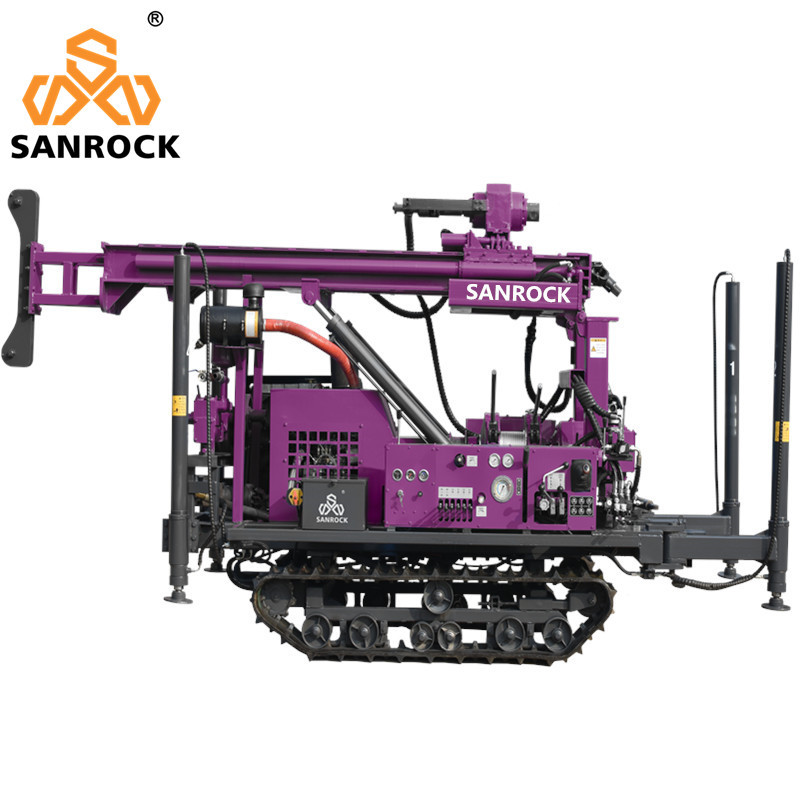

SRC350M core drilling rig water and gas dual-use series drilling
rig is a multi-functional drilling machine . The drilling rig has a
high speed and can be drilled with a mud pump to solve the
difficulty of drilling the soil air DTH hammer. The boring machine
has a large torque and can slide up and down. DTH can be used when
working with hard rock layers, gravel and pebble layers under deep
wells. DTH hammer drilled. The drilling rig can be specialized in
drilling, monitoring wells, geothermal air conditioning drilling,
diamond bit wireline core drilling, engineering geological
investigation operations.
Feature:
1. Surface hydraulic core drilling rig has excellent performance,
drilling depth of 350 meters. 2. The requirements of different
geological conditions and different drilling hole diameter. 3. The
standard configuration is NQ, HQ PQ diameter drilling tools which
can meet the high pressure, high torque, high rpm drilling
parameters to achieve efficient and fast hole formation. 4. High
Efficiency With big torque, high power unit allocation and with
reasonable structure design ,all these guarantee the drill rig’s
high operation and performance efficiency. 5. With an elegant
outline, compact structure, reliable performance and operation
easily.
The machine can choose MT or AMT as transmission with high
reliablity and long service life. Mechnical winch is kept, whose
lifting speed is high so that it can deal with well accidents.
Products Description
Model | SRC350M | Drilling capacity | Drilling depth for water well | 280m(152mm~203mm) | Wireline coring NQ size | 350m | Borehole (Drill bit) dia. | Ø75～Ø220mm | Drilling angle | 90° | Drive head | Lifting capacity | 100kN | Thrusting capacity | 50KN | Rotary speed RPM | Turning right:33-1120r/min | Turning left:37-180 r/min | Max. Torque | 9800N.m | Power Unit | Engine Model | YN27 | Rated power/speed | 42kW/ 2400r/min | Mechanical winch capacity | 4.5Ton | Drill pipe | Drill pipe diameter | Ø50/ Ø60 / Ø76/ Ø89mm
NQ/ HQ /PQ | Drill pipe length | 2000mm | Mud pump | BW160/ BW200/ BW250 | Air compressor | Air consumption | 16～35m³/min | Air pressure | 10.5-24.6bar | Crawler chassis | Walking speed | 0-2 km/h | Climbing angle | Max. 25-30° | Dimension | Transport | 4600*1900*2540mm | Working | 3800*2200*5700mm | Weight with rubber crawler | 3500kg |
|
