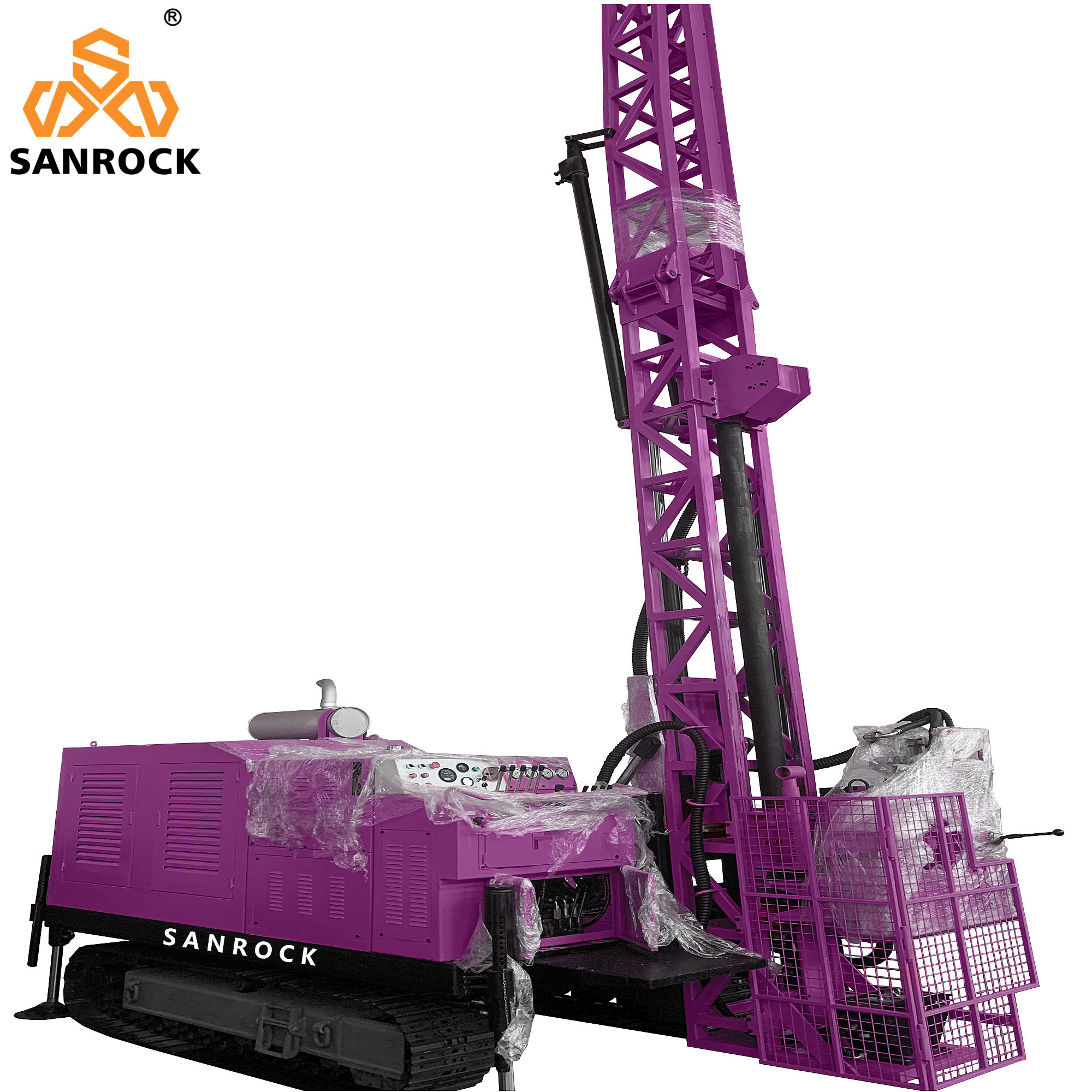

Hydraulic Diamond Core Drilling Rig Geotechnical Exploration Core Drilling Rig Machine
It can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, Drilling rig is multifunctional, it can be used with mud pump.The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.
Features
1.It has long stroke which is helpful to reduce the rod reversion frequency, avoid coring
block, and improve productivity.
2.It has a simple structure, a light weight and is convenient to remove, so as to make the
3.replacement process easily.
4.Its operation is concentrated, simple, convenient, flexible and reliable, so as to reduce
the labor intensity a lot.
5.It needn’t be provided with a special inclined tower when drilling inclined holes. It can
also realize raising two rods at one time.
6.It is convenient and fast to mount and install the rig. No specialized drill tower is needed
to allocate which has cut the preparation time largely.
7.It has several choices of the chassis, such as skid / trailer / crawler mounted(as the
customers’ requests).
Products Description
| Model | SRC800L | SRC1200L | | Mud pump model | BW-160 | BW-160 | | Diesel engine | Cummins132kw | Cummins142kw | | Borehole diameter/depth | NQ:900 m /HQ:700m /PQ:450m | NQ:1200 m /HQ:850m /PQ:600m | | Drilling angle | 0--90° | 0--90° | | Drill head feeding stroke | 3500mm | 3500mm | | Grade I | 120- 160RPM | 100-140RPM | | File II | 230-310RPM | 210-300 RPM | | Grade III | 480-650RPM | 437-636 RPM | | Grade IV | 900- 1150RPM | 750-1100RPM | | Max torque | 4000Nm | 5200Nm | | Drill head Max. Thrust force | 108KN | 108KN | | Drill head Max. Lifting capacity | 55KN | 55KN | | Main hoist Max. Lifting capacity | 71KN | 71KN | | Main hoist Lifting speed | 40m/min | 40m/min | | Assist hoist Max. Lifting capacity | 12KN | 12KN | | Assist hoist Lifting speed | 120m/min | 120m/min | | Dimension | 4200*2100*2400mm | 4200*2100*2400mm | | Weight | 10000kg | 11500kg | | |
Company Profile
1.What can you buy from us?
DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,
anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,
screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,
piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping.
Shipping efficiency depends on country and city you want to ship to.
For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
