    2600*2000 CNC Glass Cutting Machine With Breaking Table And Loading Table

    Ask Lasest Price
    Brand Name : LIJIANG GLASS
    Model Number : LJ - CNC -2620
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 sets per month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    2600*2000 CNC Glass Cutting Machine With Breaking Table And Loading Table

    CNC 2600*2000 glass cutting machine with breaking table and loading table

    Glass cutting line

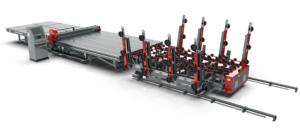

    The overall plan of the project: CNC automatic glass cutting line is composed of automatic loading table, automatic cutting table and air-floated breaking table. The automatic glass cutting line is mainly used in the processing of flat glass, which can quickly and accurately load sheets, cut straight-line,special-shaped glass and air-floated mechanical breaking sheets.Work flow is as follows: Loading table uses mechanical turnover, through the vacuum suction cup taking glass sheet from the rack, put down to the loading table. The glass is conveyed to the cutting table through the roller on the loading table and the conveyor belt on the cutting table.The cutter holder on the cutting beam of the cutting machine drives the cutter to move at high speed in X direction and Y direction by servo motor. Using Z-axis motor rotation to control the tangent trajectory of tool. At the same time, the cutter pressure and the depth of the cutter are controlled by analog quantity, and the four axes are operated simultaneously to cut. When the cutting is finished, the glass sheet is sent to the air-floated breaking table for breaking through the air cushion formed by the conveyor belt and the breaking table.



    Thickness3~19mm
    Cutting accuracy±0.15
    Cutting accuracy of special-shaped glass±0.20
    Cutting speed0-200m/min
    Conveying speed0-25m/min
    Machine size9600X2800X900±20mm
    Working table height900mm±20mm
    Weight2600kg
    Total power of equipment5-8kw

    Glass breaking table


    Breaking bar1+1 type
    Table Size9600x2800x900mm
    Glass thickness3-19mm
    Power4kw
    Table height900 + 20mm

    Sheet size1500 *1200mm (Single Side loading)
    Max loading size2600 x 2000 mm
    Glass sheet thickness3 ~ 19mm
    Working absorption depth700 mm
    X-axis walking speed5-25m/min (adjustable)
    Y-axis walking speed8-12 m/min (adjustable)
    Conveying speed5-25m/min (adjustable)
    Number of flip arms8 arms (double side loading)
    Number of single arm suckersthree
    Loading typeDouble side loading
    Working cycle45S (15S for each additional position)
    Installation power supplyAC380V/50HZ (special circumstances can be adjusted according to customer requirements)
    Installation total power5-10 kw
