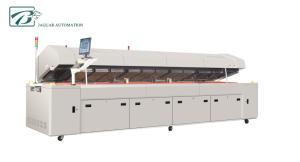

Temperature Controller Reflow Soldering Oven , 12 Zones SMD Soldering Machine

12 Zones Reflow Soldering Oven R12,Temperature Controller 12 Zones Hot Air Reflow Soldering Oven,SMD Soldering Machine

Device configuration
2.01 Number of heating / cooling zones Upper 10, lower 10 heating zones, upper 3 / lower 3 cooling zones
2.02 Control system WIN 7+ Lenovo business computer + PLC
2.03 Temperature control mode PID closed-loop control + SSR drive
2.04 temperature test line 3
2.05 Transportation system Rail + mesh belt transportation
2.06 Transportation control mode 4 inverters + imported transportation motor
2.07 chain structure
2.08 Guide rail structure
2.09 Rail width adjustment
2.10 Upper cover start The upper cover is opened electrically to facilitate cleaning in the furnace
2.11 UPS power supply power failure backup PCB production completed

Specification:

1. Detailed description
1.01 Dimensions 7200 * 1350 * 1600mm
1.02 Body Color Ivory
1.03 Net weight 3000kg
1.04 exhaust volume 10m3 / min × 2 channels
1.05 power supply 5 wires 3 phases; 380V 50 / 60HZ; (□ O: 220V 50 / 60HZ)
1.06 Power Starting Power 42kw Consumption Power 10-14kw
1.07 Heating time about 30mins
1.08 temperature range room temperature--300 ° C
1.09 PCB board temperature distribution deviation ± 1.5 ℃
1.10 Mesh belt width 500mm
1.11 PCB maximum width 400mm
1.12 Part height 20mm above 30mm
1.13 Transportation direction left to right (□ O: right to left)
1.14 Rail fixing method Front fixing (□ O: Rear fixing)
1.15 Height of rail from ground 900 ± 20 mm
1.16 Transport speed 300-2000mm / min
1.17 Parameter storage A variety of production setting parameters and conditions can be stored
1.18 Abnormal alarm Ultra high or low temperature alarm, sound and light two ways
1.19 Lubricating oil can be switched automatically and automatically

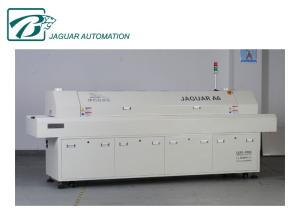

JAGUAR SMD Soldering Machine in Thailand Customer Factory:

Shenzhen Jaguar Automation Equipment Co., Ltd (referred to as "Jaguar") is a High-speed developing enterprise of High Precision Automatic lead-free Equipment such as reflow oven and wave soldering machine manufacturer, which specializes in lead free machine research and development.

As one of the well-known lead-free electronics equipment manufacturers in China, JAGUAR was founded in 2009 and headquartered in Shenzhen.

With full implementation of the PID process, reliability design concept and reliability testing throughout the entire product line, The company insists on market demand, established offices in various provinces and cities in the country.
