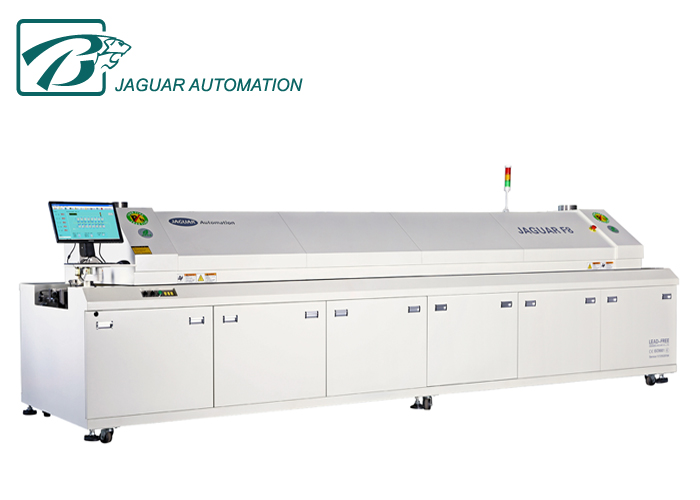

Lead-Free Hot Air 8 Zones Reflow Oven,SMT Reflow Soldering Machine For SMT Line

Lead-Free Hot Air 8 Zones Reflow Oven,SMT Reflow Soldering Machine For SMT Line

Rails are automatically widened and narrowed
Rail hardened for durability
Heating wire plug-in type, modular
3 temperature detectors and 3 with thermocouple test line
Electric support cover
UPS power failure protection
Flux secondary recovery system

Introduction:

• Well-known brand computer with Siemens PLC intelligent control system, high precision temperature control in ± 1-2 ℃ (if the computer has gone failure accidentally, it can realize off-line mode and not affecting production) and to ensure that the control system is stable and reliable;

2. Windows XP operating platform with user friendly operation.

3. In order to ensure safety and reliability, hood opening in automatically.

• Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and SMEMA connection ensure that guide adjustable wide precision and high service life.

• Automatic controlled chain lubrication system..

• PID closed loop control for all heating zones independently, sequential start up to

reduce power consumption)

• Mesh/chain transmission controlled by computer, which can fulfil different kinds of PCB production criteria.

• Visual & Audio Alarm for abnormal condition.

• With leakage protector, ensure safety protection for operating personnel and control system.

• The built-in UPS and automatic delay shutdown system guarantee power failure or overheat won’t harm the PCB and machine.

• The German ERSA world leading tiny circulation heating mode, and the upper and lower independent air tiny circulation system, temperature uniformity and thermal compensation high efficiency, high efficient supercharged accelerated air duct, greatly improve the circulating hot air flow, heat up temperature quickly (about twenty minutes), thermal compensation for high efficiency, high temperature welding and curing;

• The upper and lower every temperature zone with independent temperature inductive sensor, real-time monitoring and compensation every temperature zone balance;

• Have password administration of the operating system, to prevent the irrelevant personnel changes to the process parameters, operation records management traceability process parameters modification, improve the management convenient. Capable for saving user existing parameters and profile printout;

• Integrated control window, the computer switch, test or printout profile and data transmission are convenient, humanized design. Equipped with three-channel temperature profiling system, may at any time to check soldering objects by the actual temperature profile (without 3^rd party profiler);

15. From international standard quick cooling system, magnifying glass type efficient rapid cooling, cooling speed can reach 3.5 ~ 6 ℃/ SEC, management is very convenient; External chiller unit, ensure that spot crystal effect (Option selected items, the standard configuration for forced natural air cooling).

Specification:

△ Up 8 Heating Zones and Bottom 8 Heating Zones,With Up 2 Cooling Zone and Bottom 2 Cooling Zones

Shenzhen Jaguar Automation Equipment Co., Ltd (referred to as "Jaguar") is a High-speed developing enterprise of High Precision Automatic lead-free Equipment such as reflow oven and wave soldering machine manufacturer, which specializes in lead free machine research and development.

As one of the well-known lead-free electronics equipment manufacturers in China, JAGUAR was founded in 2009 and headquartered in Shenzhen.

With full implementation of the PID process, reliability design concept and reliability testing throughout the entire product line, The company insists on market demand, established offices in various provinces and cities in the country.
