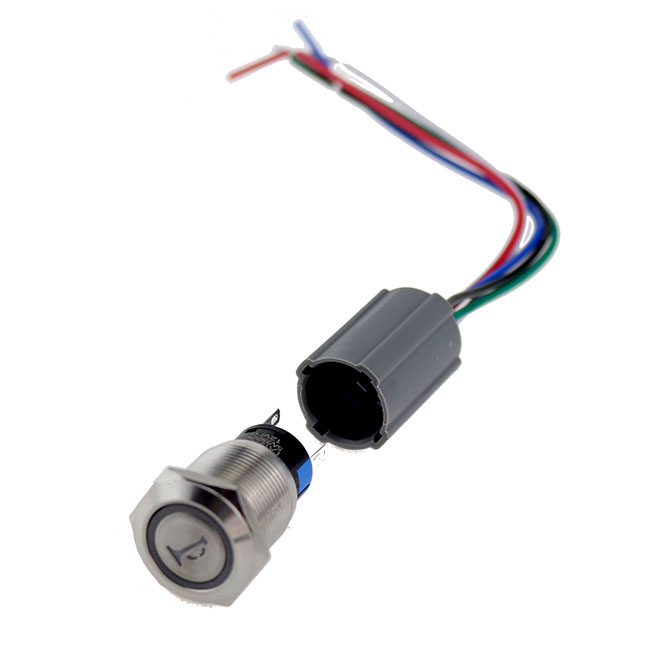

Car Horn Anti Vandal 1NO1NC long life Push Button Switch With
Connector , 7 Led Color For Choice
We are manufacturer for anti-vandal pushbutton switches, indicator
and so on.
Description
- 19mm installation hole
- waterproof: IP65 rated
- Anti-vandal material
- Outstanding appearance
- Flat actuator
- 1NO1NC OR 2NO2NC
- Horn LOGO LED illuminated, can be widely used in car horn device, audio equipment, etc.
- It luminescent part is made of super transparent material with
good transmittance.
The benefits of using a connected socket:
- Use connection socket, can improve the installation speed, the
rest of the labor costs.
- It is very convenient for disassembly and can be replaced at any
time
- The metal push button damage caused by welding can be effectively
avoided
- This connector socket is shockproof and crash proof.
- Good contact, good electrical conductivity
| Product Parameters |
| Model | LA19F-11LB/L+C |
| Dia. | 19mm |
| Max.Switch Rating | Ith : 5A Ui : 250V AC |
| Outshell/Press Key | Stainless Steel |
| Base material | PBT |
| Terminal Type | Pin Termlmal (2.8*0.5mm) |
| Mounting panel thickness | 1-10 mm |
| Ambient Temperature | -20℃～+55℃ |
| Switch Operation | Momentary or Latching |
| Package | Push button switch + Pigtail socket |
| Led Parameters |
| Led Symbol | Horn Symbol / Customized |
| Led Color | Red,Green,Yellow,Orange,Blue,White,Purple |
| Rated Voltage | 3V 6V 12V 24V 36V 110V 220V 360V for choose. |
| Reference Life | More than 40,000 hours |
F&Q
1. Q:What certificates have you obtained for your products?
A:Most of the products have passed CCC, CQC, CE RoHS and other
authoritative certification.
2.Q:What are your company's leading products
A:Our leading products are 8mm, 10mm, 12mm, 16mm, 19mm, 22mm, 25mm,
28mm, 30mm, 40mm series button switches and indicators
3.Q:Can you develop and customize products according to customers'
needs?
A:Of course, our mature technical team can help customers to
customize their requirements.
4. Q: How about the delivery transportation?
A: Most of the time, we send products by express or air transport.
Sea tranport dan rail tranport are availble too.
