    Waterproof Anti Vandal Push Button Switch , 16MM Push Button On Off Switch

    Ask Lasest Price
    Brand Name : YUESHUN
    Model Number : LA16F-11/L
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : T/T to our company account or by paypal
    Supply Ability : 5000Pcs/Day
    Delivery Time : 3-7 work days
    • Product Details
    • Company Profile

    Waterproof Anti Vandal Push Button Switch , 16MM Push Button On Off Switch

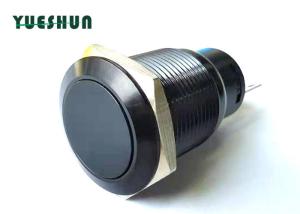

    Black Oxidized Aluminum Anti Vandal Push Button Switch 16MM On Off Momentary Waterproof switches


    Product Description

    - Our waterprpof push button switches are famous in many sites, you can find them all round you. When you in the kitchen, you find them on cooking coffee maker, dishwasher. When you get outside, you find them on elevator or a car. Now you go to a work, you start the computer, it’s there. After working you go to a supermarket or bank, it will show up too. Your choice is right.
    - Enclosure Material: Stainless Steel;High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
    - Latching/Self-locking button: Press the power on, release the hand, and keep the button still (light on); Press the button again to make it pop upand disconnect the power (light off);

    - Momentary button: Press the power on, release the hand power on of off, the button spring to original position.


    Product Specification

    Model NumberLA16F-11/L
    Mounting Hole16mm
    Max.Switch RatingIth : 5A Ui : 250V AC
    MaterialBody Material: Aluminum
    Button Material: Aluminum
    Contact Material: Silver Alloy
    Base Material: PBT
    The Front ShapeFlat Round Head
    Terminal TypePin Termlmal ( 2.5 * 0.5 mm )
    Switch OperationMomentary or Latching are available
    Contact Configuration1NO + 1NC or 2NO + 2NC are available
    Mounting panel thickness1-10 mm
    Operation DistanceAbout 2.8 mm
    Protection LevelIP67
    Operating Temp-20℃~+55℃

    Size
