Rechargeable 9W IP67 800Lm Explosion Proof Torch Light Portable
Flashlight
Product Features
● ISO9001:2015& ISO14001:2015 approval factory: Produced strictly
according to explosion-proof standards, work safety at all kinds of
flammable and explosive workplaces;
● High power CREE LED: High lumens & long lifespan, effective beam
range is over 200m;
● Patented non-memory lithium battery pack with low discharging
rate: Safe, stable, high-capacity, long lifespan;
● Elegant design with touch switch. It is portable, can also be
carried by the shoulder strap;
● High quality housing: High shock and vibration resistant and it
is well sealed to IP67;
● It has battery status indication function: Operator can check the
battery status at any time. The charger is controlled by smart
chips with trickle charging. Over charged protection, short circuit
protection and battery charge level indication etc.
Technical Parameters
| Specification | Units | Value |
| Rated Wattage | W | 9 |
| Rated Capacity | Ah | 2.2 |
| LED | Working Voltage | V | 12 |
| Current | High Light | mA | 900 |
| Low Light | 300 |
| Lumens | High Light | Lm | 800 |
| Low Light | 300 |
| Working Time | High Light | h | ≥5 |
| Low Light | 10 |
| Storbe | 100 |
| Charging Time | h | ≤6 |
| Battery Charge Cycle | Times | 1000 |
| Dimension | Length | mm | 149 |
| Width | 55 |
| Weight | g | 700 |
| Explosion-proof Grade | Ex d ib IIC T4 Gb |
| Waterproof Grade | IP67 |
Usage
● On/Off:First press the switch-> high light-> seond
press-> low light-> third press-> Off;
Long press-> Strobe-> press agian-> Off.
● Battery level: Press the switch for 3 seconds to checking the
battery level; flash 5 times means 80% power; flash 4 times means
60% power; flash 3 times means 40% power; flash 2 times means 10%
power.
● Battery status indication: There is one indicator light on switch
board. When battery level is 30%, indicator light shows green; when
battery level is 10%~20%, indicator light shows yellow; when
battery level less than 10%, indicator light shows red.
● In use: If the battery is running our, indicator light at handles
turns to red. The light become dim and flashes 10 times as warning,
and come back to its original working status. At last, the light
will be off automatically after 10 minutes. Please charge before
using.
● The charger has over charged protection and battery charge level
indication: Red light means charging; Green light means fully
charged.
Application
Suitable for electric power, petrochemical, railway, metallurgy,
mining, public security, fire control and other industries; can
meet all kinds of portable&emergency lighting needs of indoor
and outdoor workplaces, such as inspection and maintenance,
accidenct rescue, freight yard handling...
Product Shows

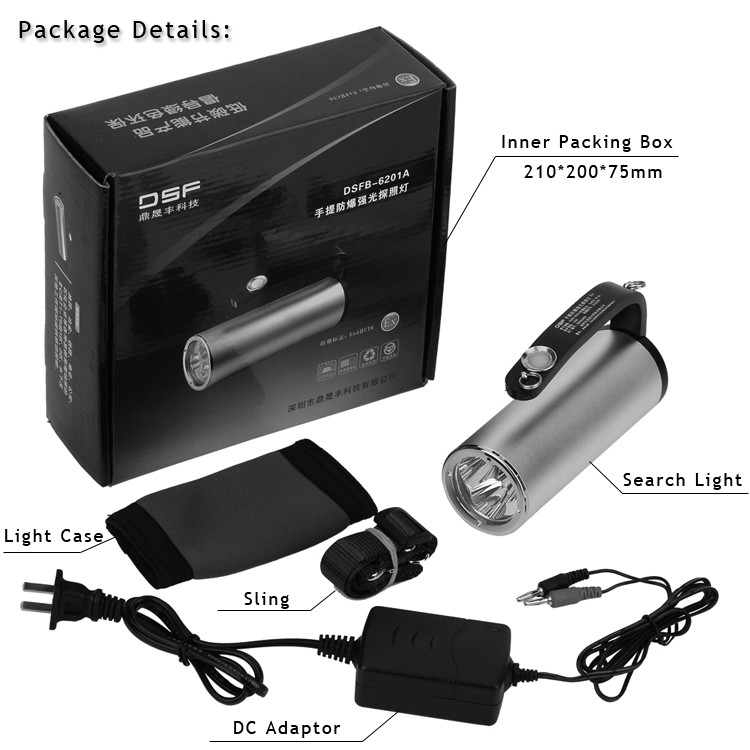

Package
Package including below:
● DSFB-6201A LED Torch Light
● Charger
● Pouch
● Lanyard
● User Guide
