IP66 Black Explosion proof portable led lighting Instrnicially safe
Flashlight
Product Introduction
1. Product Name: Pocket Explosion-proof LED Flashlight
2. Item No.: DSFB-6102 (Black)
3. Explosion-proof Type: ib EXIB, Explosion-proof Mark: II 2G Ex ib
op is IIC T4 Gb
4. Product Standard:
EN 60079-0:2012+A11:2013, EN 60079-11:2012；EN 60079-28:2015
Certification Authority: DNV.GL NB:2406
Certification No.: Presafe 17 ATEX 11647X
Technical Parameters
| Item | Unit | Technical Parameters |
| Light Source | LED Power | W | 1 |
| Luminous flux | LM | 100 |
| Lifespan | h | 100,000 |
| Lithium Battery | Battery NO. | DSF-D01 |
| Manufacturer | DSF |
| Rated Capacity | mAh | 2600 |
| Rated Voltage | V | 3.7V |
| Charging Time | h | ≤6 |
| Lifespan | Circulation | 1000 Times |
| Charger | Model | HY-055V0500A |
| Input Voltage | V | AC100～240 |
| Output Voltage | V | DC5.6V |
| Output Current | A | 0.45A |
| Lighting Time | h | 16(Weak Light) |
| 8(Strong Light) |
| Effective Lighting Distance | m | 30 |
| Working Temperature | ℃ | -20℃～+55℃ |
| Dimension | mm | Φ33×137.7 |
| Weight(Including Battery) | g | 182.4 |
| Explosion-proof Mark | II 2G Ex ib op is IIC T4 Gb |

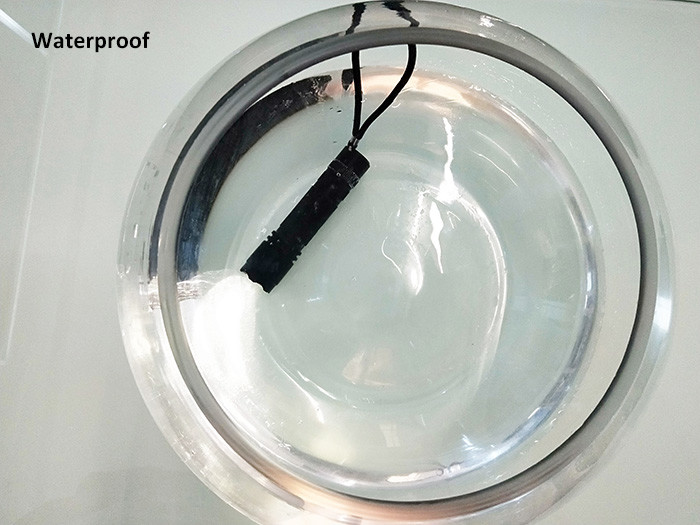

| IP Rate | IP66 |
Application
The Pocket Explosion-proof LED Flashlight (Hereinafter referred to
as Flashlight) mainly using in Zone 1, 2, II A, II B, II C Class T1~T4 explosive gas atmosphere and for lighting purposes. Mainly applied
to railway, electricity, ships, oil field, metallurgy, troops,
public security, petrochemical enterprise and other combustible and
explosive areas.
Product Shows
● Accessories: End Cap, 18650 Rechargeable Battery, Aluminum
Housing
● Mini Size:33*137.7mm
Ex Mark
Explosion-proof Grade: II 2G Ex ib op is IIC T4 Gb
