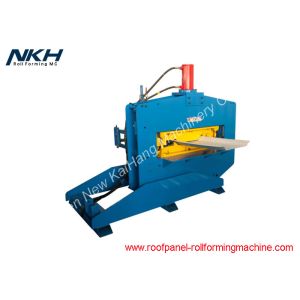

    TD1015 Roofing Sheet Crimping Machine High Precision Corrugated Iron Curving Machine

    Ask Lasest Price
    Brand Name : NKH MACHINERY
    Model Number : YX23-203-1015
    Certification : CE/SONCAP/CSA
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10 UNITS/MONTH
    Delivery Time : 40 WORKING DAYS
    • Product Details
    • Company Profile

    TD1015 Roofing Sheet Crimping Machine High Precision Corrugated Iron Curving Machine

    TD1015 hydraulic crimping curved machine, Siemens servo motor driving, high precision


    Brief Introduction of Hydraulic Crimping Curved Machine:


    Hydraulic curving machine produces curved roof panels by pressing the roll formed roof sheets continuously as per requested angles or radius on the sheet with fixed length and after the pressing, crimped roof sheets or crimp curved roofing is made. There is a PLC control system for the hydraulic curving machine and through the HMI on PLC electric cabinet, customers can set the crimp quantities and crimp distance to reach the curved angles or radius. The thickness of roof panels has to be less than 1.0mm; the pressing dies will be designed exactly the same as the roof sheets.


    Quick Detail:

    1. Thickness : 0.4-0.6mm
    2. Material : G550, PPGI
    3. Input width : 1220mm
    4. Effective width: 1000mm

    Machine list:

    1. Feeding table with rubber rollers
    2. Servo motor feed in
    3. Quick change pressing dies with cassette design
    4. Horizontal or vertical direction operation design
    5. PLC control systems

    Description/Technical Parameter details of complete line:

    • details as below table :
    Suitable roll forming materialColor steel sheet
    Thickness0.4mm-0.6mm
    Driven motor1.1Kw Siemens brand motor
    Carriage Frame designHorizontal or vertical direction
    Hydraulic group5.5Kw
    The min. flat edge350mm
    Curved Radius450mm
    Pressing diesConvex/Concave
    Electric Voltage Standard380V/50Hz/3PH or as the customer's requirements
    Major Color of Machine PaintedRAL 5015(Blue) or as per customer’s requirements

    Profile Drawing/Layout/Equipment reference pictures:
