    Horizontal / Vertical Sheet Metal Crimping Machine For 450mm Crimp Diameter

    Ask Lasest Price
    Brand Name : NKH MACHINERY
    Model Number : YX1037
    Certification : CE/SONCAP/CSA
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10 UNITS/MONTH
    Delivery Time : 40 WORKING DAYS
    • Product Details
    • Company Profile

    Horizontal / Vertical Sheet Metal Crimping Machine For 450mm Crimp Diameter

    Metal formed sheets crimping making machine, horizontal/ vertical direction design


    Quick Detail:

    1. Thickness : 0.4-0.6mm
    2. Material : G550, PPGI
    3. Input width : 1220mm
    4. Effective width: 1037mm

    Application:

    The hydraulic curving machine can make crimp curved roofing with any lengths through two methods: Horizontal Pressing and Vertical Pressing. The normal and standard pressing method is horizontal pressing for producing crimping curved roofing with curving radius not over 3 meters, and vertical pressing will be switched for the other case.

    A hydraulic crimping curved machine is generally consisting a tube-structure supporting table; roll forming unit (3 roll forming stations and the rolling tools designed as per the drawing of roof panels), pressing tool, hydraulic system, oil pump, and a PLC control cabinet.


    Machine list:

    1. Feeding table with rubber rollers
    2. Servo motor feed in
    3. Quick change pressing dies with cassette design
    4. Horizontal or vertical direction operation design
    5. PLC control systems

    Description/Technical Parameter details of complete line:

    • details as below table :
    Suitable roll forming materialColor steel sheet
    Thickness0.4mm-0.6mm
    Driven motor1.1Kw Siemens brand motor
    Carriage Frame designHorizontal or vertical direction
    Hydraulic group5.5Kw
    The min. flat edge350mm
    Curved Radius450mm
    Pressing diesConvex/Concave
    Electric Voltage Standard380V/50Hz/3PH or as the customer's requirements
    Major Color of Machine PaintedRAL 5015(Blue) or as per customer’s requirements

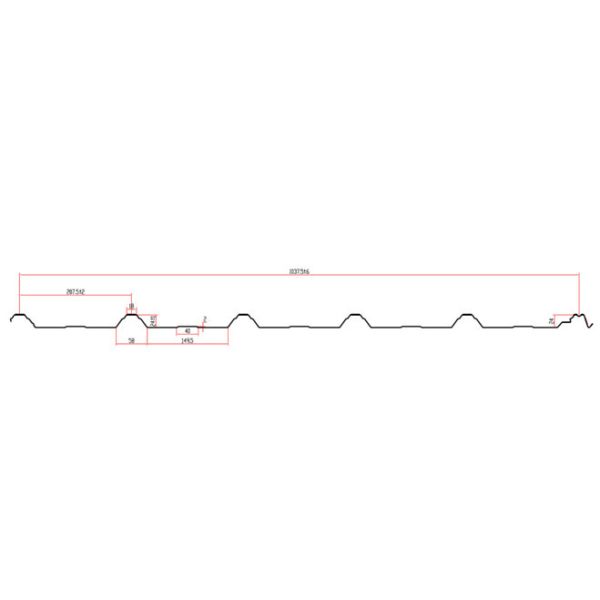

    Profile Drawing/Layout/Equipment reference pictures:
