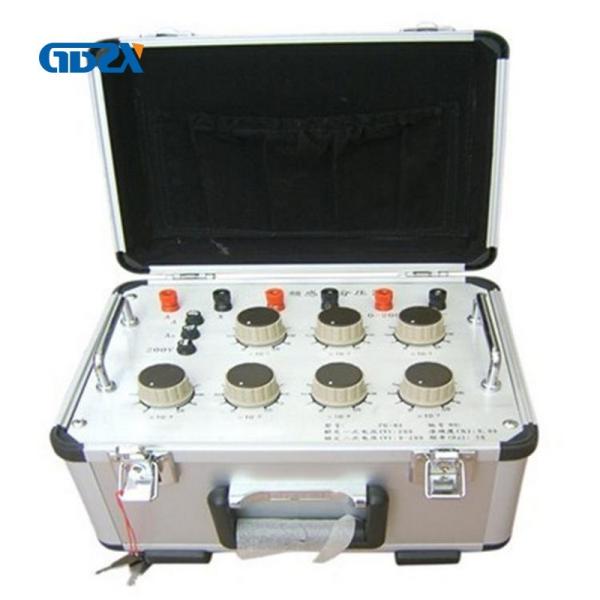

    Self Coupling Induction Voltage Divider Class 0.002 200V Power Frequency

    Ask Lasest Price
    Brand Name : GDZX
    Model Number : ZXQG-C
    Certification : ISO9001
    Price : 2790USD/PCS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000PCS/MONTH
    • Product Details
    • Company Profile

    Self Coupling Induction Voltage Divider Class 0.002 200V Power Frequency


    Wuhan GDZX Power Equipment Co.,Ltd OFFER YOU :

    1: FACTORY DIRECT PRICE.
    2: NICE QUALITY.
    3: QUICK SHIPPING WITHIN 15 DAYS.

    4: SMALL ORDER WELCOME..

    5: ONLINE PAYMENT.

    6: SUPPORT One year free warranty, three years quality assurance, lifetime maintenance.

    7: AFTER SALES SERVICES 24/7

    Product introduction

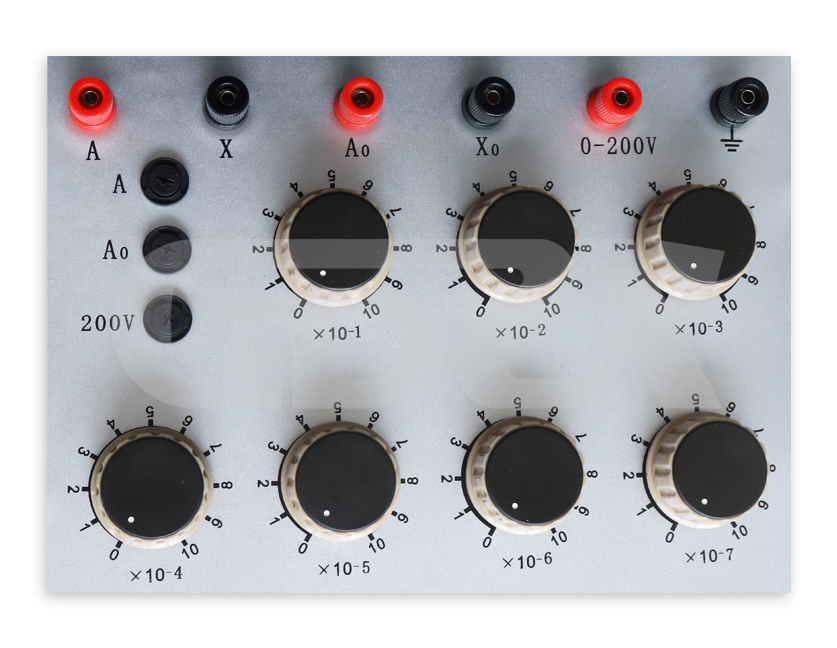

    Inductive Voltage Divider is an instrument composed of three connected transformers. It can make output voltage to be specified proportion of input voltage through changing over switches, and will output accurate and stable voltage value. In addition, this installation featured with an characteristic of high input impedance and low output impedance which provides an important performance to precise electric measurement, widely used in measurement circuits and measuring devices.



    II Performance Features:


    1 High precision, good linearity, high stability.
    2 Small volume, easy to use

    Product paremeters :

    Accuracy class0.002
    Uncertainty of proportion3*10-6
    Rated load0VA
    primary voltage200V
    Secondary voltage0~200V
    Rated frequency50Hz
