ZX1030C Voltage Monitoring Instrument Calibration Equipment
Product introduction
ZX1030C Voltage Monitoring Instrument Calibration Equipment can calibrate accuracy, sensitivity, measurement error rate,
measuring time, harmonic test etc. of measuring type and recording
type voltage monitors. It is easy to operate and reliable to use, a
very good choice for calibrating voltage monitors.
Features
1. Measuring output is stable and reliable by using dsp digital
signal generating and processing technology.
2. Large lcd display and tip function.
3. Simple panel ( total four terminals) and easy operation.
4. Provided with direct reading standards and measurement errors,
5. High fineness, good for regulation.
6. Full software calibration.
7. Harmonic output: 2~31th order, amplitude 0~20%.
8. Nonvolatile memory with large storage, can save 250 calibrated
instruments’ data.
9. Installed with rs232 inter face and software for
auto-calibration and data management.
10. Gone through over load test, dumping test, misusing test, high
temperature aging test making it high reliable.
Technical Indicators
| Item | Index |
| Voltage | Output range | Basic range: 57.7V,100V,220V,380V |
| Regulation range | 0～120% |
| Regulation fineness | 0.01%UN |
| Maximum output capacity | 30VA |
| Accuracy | 0.05% |
| Frequency | Regulation range | 45Hz～65Hz |
| Regulation fineness | ±0.01Hz |
| Waveform distortion | <0.2％(when output since wave) |
| Output stability | 0.01%/1min |
| Weight | 8 KG |
| Dimension | 325*280*135mm |
| Power supply | 220V±10%; 50Hz±5% |

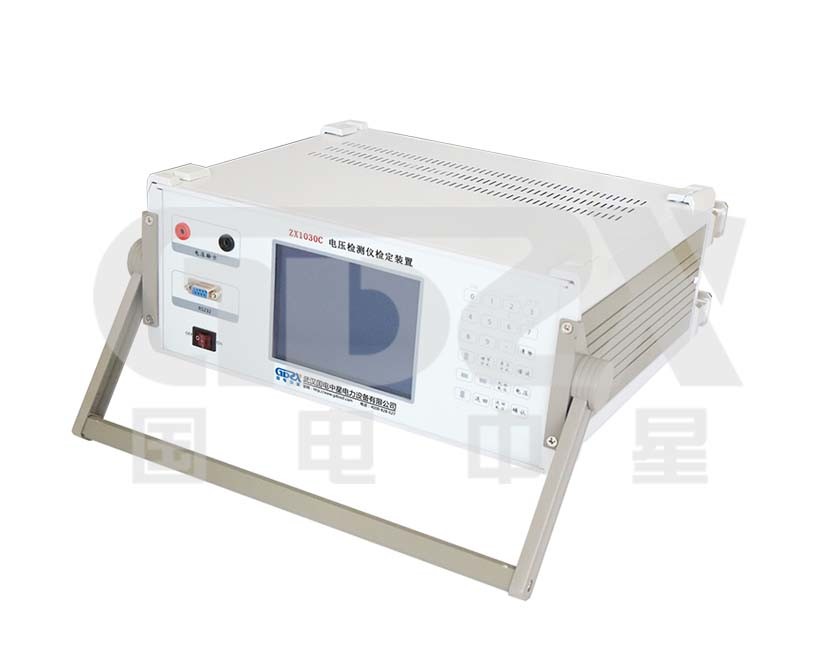

Product pictures
PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt
of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box
so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight,
railway and so on for your choice, competitive shipping method will
be advised to you.
(4)If you go with your own forwarder, we will provide all necessary
documents for customs clearance.
(5)After shipping, we will remain attentive till goods well
received.
If you need detailed specification, please feel free to contact us.
