Fiber Optic Patch Cord GYFJH Indoor Outdoor Cable LSZH G657A2 with
Optic-Tap SC Connector
MINI-SC waterproof reinforced connector, is a small high waterproof
SC single core waterproof connector. Built-in SC connector core, to
better reduce the size of the waterproof connector. It is made of
special plastic shell (which is resistant to high and low
temperature, acid and alkali corrosion resistance, anti-UV) and
auxiliary waterproof rubber pad, its sealing waterproof performance
up to IP67 level. The unique screw mount design is compatible with
the fiber optic waterproof ports of Huawei equipment ports.
Suitable for 3.0-5.0mm single-core round cable or FTTH fiber access
cable.
Features:
● Spiral clamping mechanism ensures long-term reliable connection
● Guide mechanism, can be blinded with one hand, simple and quick,
connect and install
● Seal design: It is waterproof, dust-proof, anti-corrosion and so
on.
● compact size, easy to operate, durable
● Through the wall seal design
● Reduce welding, connect directly to achieve interconnection
Product parameters:
| Insertion loss | ≤ 0.2db | Repeat ability | ≤ 0.5db |
| Return loss | ≥65dB (APC); 55dB(UPC) | Operating temperature | -40 to 85°C |
| Mating time | ≥ 1000 times | Waterproof grade | IP67 |
Ftth patch cord= one end is mini sc connector with waterproof plug,
the other end is standard SC connector.
Each piece will pack with plastic film if more than 10meters.
each mini sc waterproof plug will be compatible with mini sc
adapters / coupler when installation.
the whole patch cord will be packed with plastic film to protect
the connector and cable, and will be a sticker to mark the
specification.
Package information:
if cable is not long, will use plastic bag for each item, if
longer, will use plastic film to warp and protect it.
there will be sticker on the bag or film to identify, can print
customer LOGO or model, etc.
Application:
● Fiber optic communications in harsh outdoor environments
● Outdoor communication equipment connection
● Huawei waterproof fiber equipment SC port
● Remote wireless base station
● FTTx wiring project

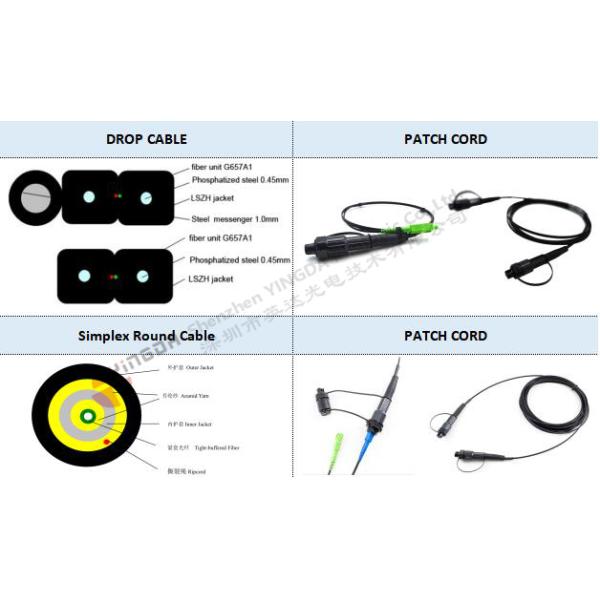

2 TYPES of cable can be used to connect with the box:
Order information:
| PN:YDPC | - | xxxx | - | xxxx |
| YD= yingda | | MS=Mini SC | | 25=2x5mm drop cable |
| PC= patch cord | | SA=SC/APC | | 23=2x3mm drop cable |
| | SU-SC/UPC | | 50=5mm round cable |
| | NN=none | | 70=7mm round cable |
