    1550nm Mini EDFA Optical Amplifier Receiver OR18 SC/APC 0-10 DBm RF Converter AGC

    Fiber Optic Receiver Node OR18 SC/APC Mini 1550nm 0-10dBm RF Converter AGC


    Description


    OR18 Series Optical receiver is a home-based optical receiver for FTTH (fiber to the home) network optical fiber access terminal, in order to achieve analog or digital signal. The machine uses low-power optical detectors, GaAs and AGC technology to meet the needs of FTTH CATV reception. A variety of functional products in the application, slightly different.


    OR18A and OR18B pay attention to product economy practicability, among them OR18B has AGC control function, bring economical application to the user, the minimum that the digital signal receives is -15dBm; OR18C and OR18D pay attention to the product high performance index, possess AGC function, digital signal receive 0 ~ -18dBm.


    OR18 FTTH optical receiver provides customers with a variety of options to meet the actual needs of different networks.

    1. OR18A: Economic models, no AGC, the lowest digital signal reception -15dBm, the output level ≥ 100dBuv (PIN = 0dBm);
    2. OR18B: Economic models, AGC range optional, the lowest digital signal receiver -15dBm, the output level ≥ 80dBuv (AGC: 0 ~ -9dBm)
    3. OR18C: Economic + Performance: AGC range optional, the minimum digital signal reception-18dBm, the output level ≥ 73dBuv (AGC: 0 ~ -9dBm)
    4. OR18D: High performance: AGC range optional, the lowest digital signal reception -18dBm, the output level ≥ 94dBuv (AGC: 0 ~ -9dBm)

    Feature


    • High quality shell, through hole design on both sides, good heat dissipation
    • RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal satisfies -10dBm reception
    • With optical input AGC control function (AGC range can be customized)
    • Anti-high frequency surge protection GaAs amplifier tube
    • Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is only 2W, with optical detection circuit
    • SC/APC & SC/PC&FC/APC&FC/PC optical connectors, custom male or fe-male RF connector
    • Multi-stage lightning protection device (TVS transient suppression diode), lightning protection system is tight, ensuring the safe operation of the equipment

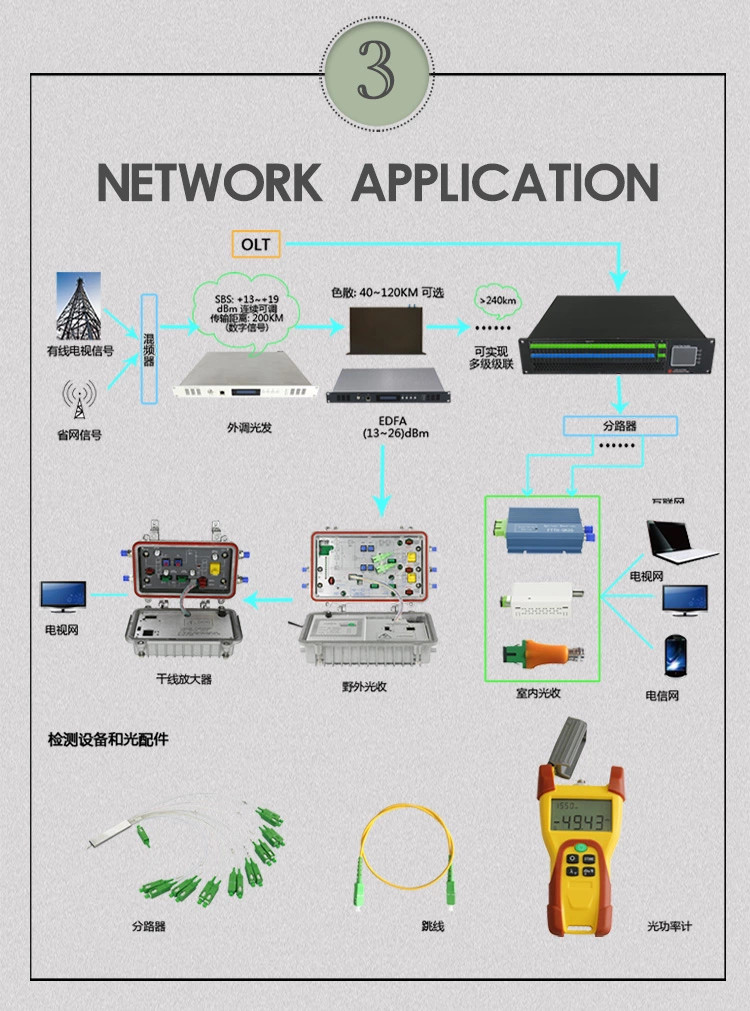

    Application


    • Typical Solution:FTTH,FTTB,PON+EOC
    • Typical CATV, IPTV

    Parameter


    ModelOR18AOR18BOR18COR18D
    Wavelength1100~1600nm&1550nm
    Input Optical Power0dBm~-10dBm(analog)&0dBm~-15dBm(digital)0dBm~-10dBm(analog)&0dBm~-18dBm(digital)
    Return Loss>45 dB
    Optical ConnectorFC/APC&SC/APC&FC/PC&SC/PC
    RF Bandwidth40~1006MHz
    Flatness±1dB@40~1006MHz
    RF Output Loss≥16dB@ 40~550MHz ≥14dB@550~1006MHz
    Output Level(single port)Pin@-15dBm(70±1)dBuV(67±1)dBuV(61±1)dBuV(82±1)dBuV
    Output Port1&2(customize)
    Output Impedance75Ω
    AGC Range0dBm~-9dBm&-3dBm~-12dBm(customize)&-6dBm~-15dBm(customize)
    C/N(Note 1)≥51dB
    CTB(Note 1)≥65dB
    CSO(Note 1)≥62dB
    Equipment VolatageDC5V±0.5
    Adapter VolatageAC220V
    Inner Feedback VolatageDC5V±0.5
    Working Temperature-25℃ ~+45℃
    Consumption<2W
    Size91×79×24mm
    Carton Gross Weight1.20kgs(10pcs)

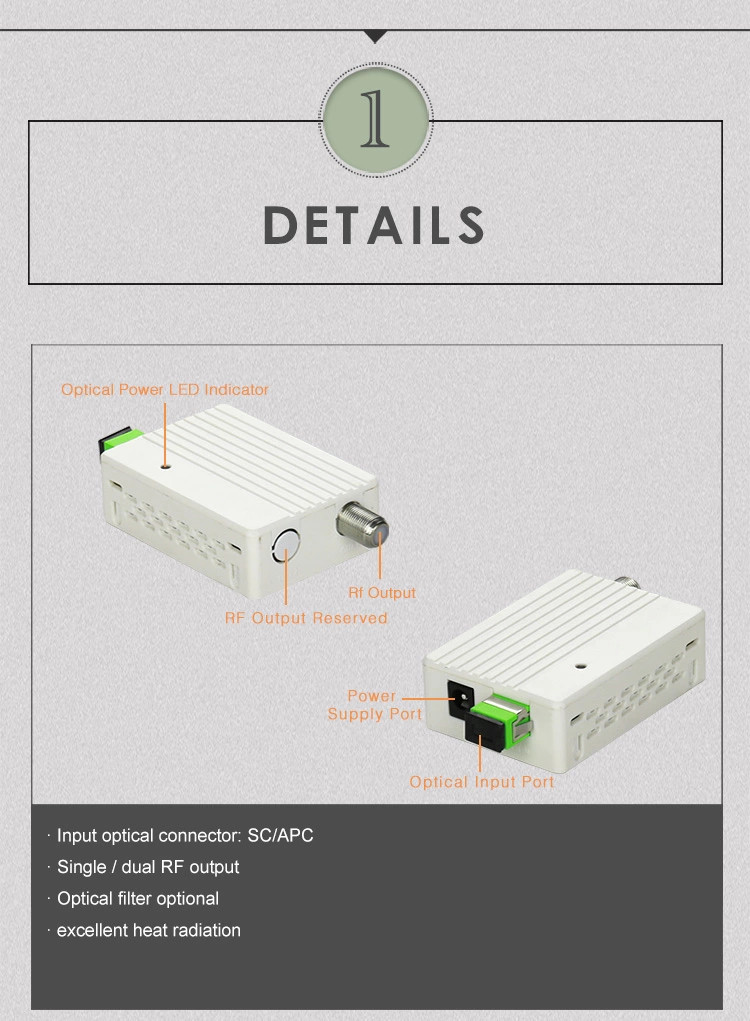

    Product Picture
