    FTTH / FTTP Micro Optical Receiver Node 2 Output Port CATV Network Fiber Optic Model Indoor

    CATV Network fiber optic model Indoor 2 output port FTTH/FTTP micro Optical Receiver Node

    Description


    OR20 2 Port Mini FTTH CATV Optical Receiver WDM is a home-based mini FTTH node, cater to the ultimate goal of development of optical access for FTTH network, analog or digital signal can be realized. The equipment uses low-power optical detector, GaAs and optical control AGC technology to meet the needs of FTTH CATV reception. Variety of functional products in the applications is slightly different.


    Hot sale 2 Port Mini FTTH CATV Optical Receiver WDM is with AGC, plug-in photocell. OR20 is with WDM and AGC.


    Feature


    • Adopts WDM technology, single fiber to the home(1490/1310/1550nm) triple-play application can be realized.
    • AGC control to guarantee relative stable RF input in different RF in. FTTH Optical Node FTTH Optical Node
    • Small housing suitable for home use.
    • 12V~15VDC power supply. FTTH Optical Node
    • Good parameter, but low power consumption

    Parameter


    Input optical power0dBm~-10dBm(Analog signal)AGC Control range0dBm~-9dBm
    &0dBm~-18dBm(Digital signal)CTB(note)≥65dB
    optical reflection loss>45 dBCSO(note)≥62dB
    Optical connector formFC/APC or SC/APC or FC/PC or SC/PCHost voltageDC5V
    Frequency Range45~1006MHzAdapter voltageAC90V ~145V&AC145V ~ 265V or custom
    In-band flatness±1dB@45~1006MHzInfeed voltageDC5V
    RF output reflection≥16dB@ 47~550MH ; ≥14dB@1006MHzOperating temperature-20℃ ~+55℃
    Gain adjustment range0-18dBpower<1W
    Output level(78~80)dBuV(AGC:@-9~+0dBm,Pin=0dBm)Product net size129×79×26mm
    Output port number1or 210 pack sizes313×245×83mm
    RF output impedance75ΩFCL package size (100pcs)500×440×345mm
    Carrier to Noise Ratio (Note)≥51dBProduct net weight0.17kg

    Application


    • Typical Solution:FTTH,FTTB,PON+EOC
    • Typical CATV, IPTV

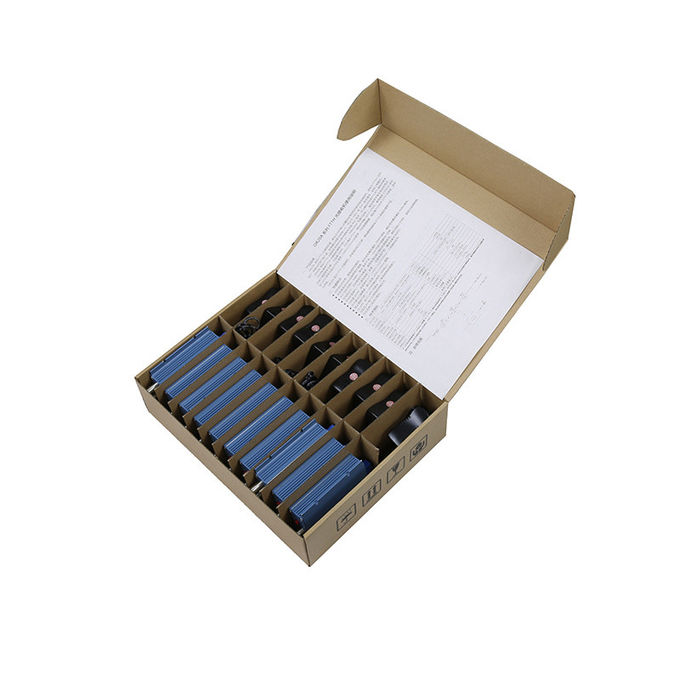

    Product Pictures
    1000MHz Catv Micro Ftth Optical Node 2 Output Ports CATV AGC WDM For GEPON System
    1000MHz Catv Micro Ftth Optical Node 2 Output Ports CATV AGC WDM For GEPON System
    1000MHz Catv Micro Ftth Optical Node 2 Output Ports CATV AGC WDM For GEPON System
    1000MHz Catv Micro Ftth Optical Node 2 Output Ports CATV AGC WDM For GEPON System
    Wangtong Factory
    1000MHz Catv Micro Ftth Optical Node 2 Output Ports CATV AGC WDM For GEPON System
    Company Profile
    1000MHz Catv Micro Ftth Optical Node 2 Output Ports CATV AGC WDM For GEPON System
