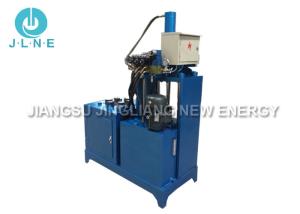

Large Output Low Noise Automatic Operating Motor Stator Separator
The electric motor recycling machine is specially designed for
recycling the motor stator to get the copper. Kinds of motor from
washing machine, pump, fans and machines.
Motor stator consists of three parts,the stand and installed within
the frame of the cylindrical core and the copper wire winding.Waste
motor stator cutting and dismantling machine is forcible entry of
special equipment for motor stator,the equipment adopts the
hydraulic system work,the equipment can cut stator frame (limited
to cast iron frame), cylindrical iron core in half,exhaustion
copper wire winding From cylindrical core,complete the stator and
rotor of the motor dismantling process.The equipment to work stable
and reliable, high efficiency, convenient and flexible operation,
zero pollution to the environment, is the ideal equipment of motor
stator forcible entry.
Application of electric motor separating machine:
this motor recycle machine is used for breaking the motor and and
then separate the inside copper wire out for recycling use.The
machine is 3 in 1 machine, it is work with three steps,first step
is cut the motor cover, 2 steps is cutting stator, 3 step is
pulling the copper line. and the motor breaking recycling machine
can deal with 10-40 pieces motor. machine design with high working
efficiency easy to operate and use.
Working principle of stator separating machine:
motor stator broken by hydraulic system disassemble, moving with a
master cylinder, through the replacement of different tooling,
respectively (limited to the motor stator frame and stator iron
frame) cylindrical iron core is broken into two halves, in another
position can be a cylindrical stator winding copper iron core in
the iron pulled out. The motor stator, silicon steel sheet, copper
wire from the three part to complete the dismantling process of
motor stator.
Specification of stator recycling machine:
| Product Name | Motor Stator Recycling Machine |
| Usage | Cutting and Pulling Out The Copper From Stator |
| Stator Range | 8~30cm Stator Diameter |
| Capacity: | 8~30 Pieces/Hour |
| Power: | 3-Phase 4KW |
| Net Weight: | 790Kg |
| Mea | 1260mm*710mm*1860mm |
FAQ
Q1: Is there anything we should take care before processing?
A1: Please clear up iron from the mixed cables, get the granulator
started, infeed according to the granulator’s capacity.
Q2: If there’s plastic in copper granules,how should I do?
A2: Please adjust the wind power of the vibrator, bottom wind
power, adjust vibration frequency.
Q3: If copper granules output quantity is becoming Less,what’s the
problem?
A3: Please inspect the vibrator, please brush off the copper
granules in the vibrator’s screen.
Q4: Which kinds of cables can I processing with this machine?
A4: Auto-wire, communicate cable, and other mixed copper
wire/cable, phone wires and so on.
Q5: Is there has pollution in recycling?
A5: This is dry separating, not pollution and other waste at all.
Q6: Is there any other kinds cable granulator? I want bigger
output.
A6: Yes, sure, we also have other model BS-800 with bigger output,
and BS-1000, the output can up to 1t to 2t.
