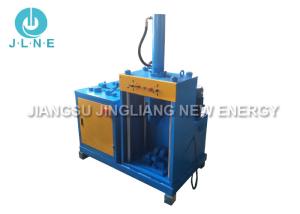

Motor Recycling Machine Scrap Electric Motor Stator Separator
Machine
The motor stator is composed of a machine frame, a cylindrical iron
core arranged in the machine frame and a copper wire winding in the
three parts of the iron core. The motor stator is a special
equipment for dismantling broken disassemble the motor stator, the
hydraulic system equipment, equipment can be the stator (limited to
cast-iron), cylindrical core broken into two, copper wire winding
from the cylindrical iron core is pulled out, complete the
dismantling process of motor stator. The utility model has the
advantages of stable and reliable device operation, high work
efficiency, convenient operation, flexibility, and zero pollution
to the environment, and is an
ideal device for breaking and disassembling the motor stator.
Application of waste motor stator separator:
Automatic Motor Recycling Machine is used for motor/stator cutting
and stripping copper from iron/aluminum cover, this is a kind of
waste motor/stator recycling equipment. This machine cut the
stator/motor in half firstly, then take all the inside copper out
finally that all steps within 2 times. It's very cost-effective and
convenient in using.

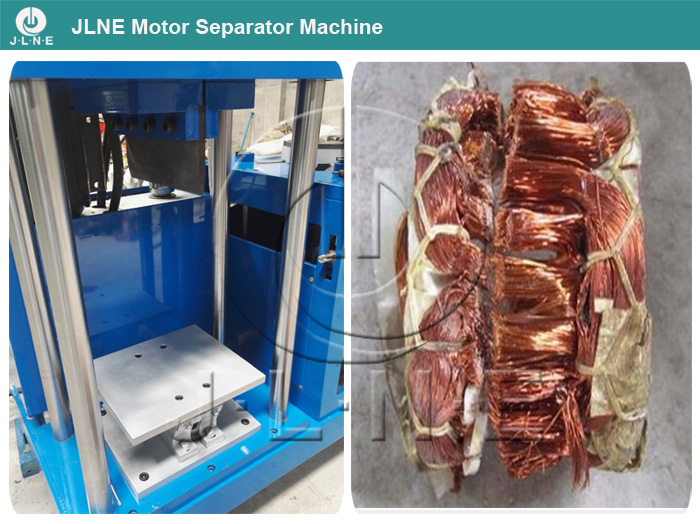

Working principle of stator separating machine:
motor stator broken by hydraulic system disassemble, moving with a
master cylinder, through the replacement of different tooling,
respectively (limited to the motor stator frame and stator iron
frame) cylindrical iron core is broken into two halves, in another
position can be a cylindrical stator winding copper iron core in
the iron pulled out. The motor stator, silicon steel sheet, copper
wire from the three part to complete the dismantling process of
motor stator.
Specification of stator recycling machine:
| Product Name | Motor Stator Recycling Machine |
| Usage | Cutting and Pulling Out The Copper From Stator |
| Stator Range | 8~30cm Stator Diameter |
| Capacity: | 8~30 Pieces/Hour |
| Power: | 3-Phase 4KW |
| Net Weight: | 790Kg |
| Mea | 1260mm*710mm*1860mm |
FAQ
Q1: Is there anything we should take care before processing?
A1: Please clear up iron from the mixed cables, get the granulator
started, infeed according to the granulator’s capacity.
Q2: If there’s plastic in copper granules,how should I do?
A2: Please adjust the wind power of the vibrator, bottom wind
power, adjust vibration frequency.
Q3: If copper granules output quantity is becoming Less,what’s the
problem?
A3: Please inspect the vibrator, please brush off the copper
granules in the vibrator’s screen.
Q4: Which kinds of cables can I processing with this machine?
A4: Auto-wire, communicate cable, and other mixed copper
wire/cable, phone wires and so on.
Q5: Is there has pollution in recycling?
A5: This is dry separating, not pollution and other waste at all.
Q6: Is there any other kinds cable granulator? I want bigger
output.
A6: Yes, sure, we also have other model BS-800 with bigger output,
and BS-1000, the output can up to 1t to 2t.
