    Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 set/sets, per year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty

    Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty

    This is one of our products, it is powered by battery. The battery is installed in the inner of the cart. The direct-current machine gets its power from the electric control system, which make the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if it is necessary.


    Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty


    The feature of Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty


    1. The transfer machine is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc .


    2. For horizontal load transfers of a wide range of material, we could provide heavy duty, high quality Transfer Cart completely meet your need.


    3. Transfer carts are used to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base.


    4. It's necessary equipment for lifting goods, raising labor efficiency, improving working conditions.


    Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty

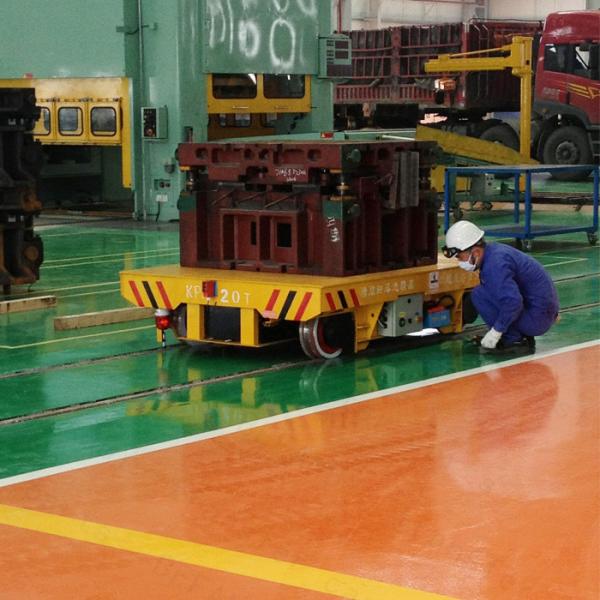

    Application Showing

    Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty


    KPX seires' rail transport vehicle can be used in many ocassions, Such as industry field(Steel plant/Metallurgy Field); Chemical Industry(Copper Industry); Working Line; etc. due to its simple structure, wherever in the plant or assembly line,only exists track, and the battery is charged fully,it can transport anywhere.Compaired with KPJ,KPT,KPC, it is not so complicated.Compaired with KPD, it is not so strict requiremnt,Therefore it is also the reason why many buyer like to purchase it.


    Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty
    Technique Parameter
    ModelKPX-10tKPX-20tKPX-30tKPX-50tKPX-80tKPX-100t
    Rated Load1020305080100
    Table sizeLength(L)360040004500550060006500
    Width(W)200022002200250026002800
    Height(H)500550600650800900
    Wheel Base260028003200420047004900
    Rail Inner Gauage143514351435143518002000
    Wheel Diameter300350400500600600
    Wheel Quantity444444
    Ground Clearance505050507575
    Running Speed252020202020
    Motor Power2346.31015
    Battery Capacity160180250330400440
    Battery Voltage484848487272
    Running Time When Full Load4.843.53.33.63.2
    Max Wheel Load42.677.7110.4174278.4343.8
    Reference Weight4.25.96.8812.814.6
    Recommended Rail ModelP18P24P38P43P50QU100
    Our Company

    Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty

    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
    Our Advantage

    Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty

    Our Customer

    Injection Mould Battery Transfer Cart 0 - 20m / Min Running Speed Long Warranty

    Production Supply Scope
    Product NameModel No.Power Supply ModeLoad CapacityOther ItemsUsage
    Rail Transfer CartKPDConductor RailLoad range 1-300ton, can be customized per client demandRunning distanceOrdinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
    Battery Powered Transfer CarKPXBatteryUsing frequency
    Motorized Transfer TrolleyKPJCable DrumRunning distance
    Busbar Powered Handling CartKPCBusbarWorking shop
    Towed Rail TrailerKPTractor1-100tWorking shop
    Steerable Towed CarBWTTractorLoad range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.Working environment
    Trackless Handling MachineBWPBatteryWorking path
    Our After Service
    • Our commitment:
    • The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
    • 16 hours engineering service and 24 hours internet service for our customers
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
