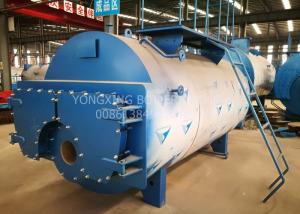

5 Ton Oil Fired Combi Boiler 3 Pass Wet Back Steam Boiler For Palm Oil Production

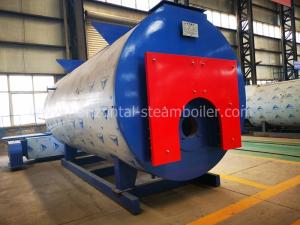

Oil Fired Combi Boiler Introduction
Oil Fired Combi Boiler is a kind of horizontal three-way full wet backfire tube automatic
steam boiler, Oil Fired Combi Boiler is suitable for 500kg/h-20t/h capacity to use all kinds of natural
gas and petroleum fuels, such as natural gas, liquefied petroleum
gas, liquefied natural gas, natural gas, urban gas, biogas, diesel
oil, heavy oil and so on.
1. Fuel saving and high thermal efficiency
1. The Oil Fired Combi Boiler adopts marsh type full corrugated road, which not only increases
the heating area but also ensures the free expansion of the boiler
when Oil Fired Combi Boiler is heated and improves the boiler efficiency.
The overall bellows design is adopted to improve heat transfer
efficiency and eliminate potential safety hazards caused by welding
stress on pipelines.
2. Sufficient steam supply, high-quality steam quality
1. The Oil Fired Combi Boiler is designed with a large amount of water and sufficient steam
output.
2. Special steam water separator greatly improves steam quality.
3. Safe and reliable operation
1. Double-layer 12cm aluminum silicate insulation material,
double-layer leak-proof layer design, excellent sealing state, to
avoid damage to equipment and human body caused by leakage.
2. Add tension rod to the tube plate to prevent cracking.
3. Explosion-proof door design to prevent boiler explosion and
improve boiler operation safety factor
4. Double water level gauge, two spring safety valve redundancy
design, safe and reliable.
4.IntelligentOil Fired Combi Boiler , automatic control structure design
1. The world's advanced brand burner is adopted with stable
combustion performance.
2. Adopt electromechanical integration design, adopt PLC control
cabinet to automatically control boiler operation
3. Intelligent water treatment equipment controlled by computer is
adapted for automatic recovery.
4. Vertical multi-stage centrifugal stainless steel pump with
continuous feed water is adopted without manual adjustment.
Oil Fired Combi Boiler Technical parameter sheet
| Oil Fired Combi Boiler model | Capacity | Pressure | Feed temp. | Steam temp. | Fuel consume. | Thermal efficiency |
| Light oil | Heavy oil | Natural gas |
| t/h | Mpa | ℃ | ℃ | kg/h | kg/h | m3/h | % |
| WNS1-1.0-Y(Q) | 1 | 1 | 20 | 184 | 65.5 | 67.3 | 84.2 | 91 |
| WNS 2-1.25- Y(Q) | 2 | 1.25 | 20 | 194 | 129.6 | 132.2 | 165 | 92 |
| WNS3-1.25-Y(Q) | 3 | 1.25 | 20 | 194 | 192 | 195 | 250 | 92.1 |
| WNS4-1.25- Y(Q) | 4 | 1.25 | 20 | 194 | 256 | 261.9 | 323.6 | 93 |
| WNS5-1.25- Y(Q) | 5 | 1.25 | 20 | 194 | 318 | 322 | 386 | 93 |
| WNS6-1.25- Y(Q) | 6 | 1.25 | 20 | 194 | 380 | 390.6 | 450 | 93.2 |
| WNS8-1.25- Y(Q) | 8 | 1.25 | 105 | 194 | 503 | 517 | 642 | 93.5 |
| WNS10-1.25- Y(Q) | 10 | 1.25 | 105 | 194 | 628 | 643 | 805 | 93.5 |
| WNS15-1.25- Y(Q) | 15 | 1.25 | 105 | 194 | 940 | 965 | 1182 | 93.5 |
| WNS20-1.25- Y(Q) | 20 | 1.25 | 105 | 194 | 1250 | 1301 | 1597 | 93.5 |
Oil Fired Combi Boiler application
Beverage factory, Leather factory, Food processing industry,
Textile factory, Printing and dyeing factory, Garment factory,
Papermill, Plywood factory, Poultry feed mill, Refinery, Rice mill,
Noodle factory,Greenhouse, Sugar mill Hospital, Rubber factory,
Slaughterhouse, Soap factory, Wood processing industry, Carton
factory, Cardboard factory, Dyeing mill, Packaging industry,
Central heating, Bitumen plant, etc.
