Waterproof Keypad Access Control System Smart RFID Proximity Card
Reader Integrator
Stand alone metal waterproof access control S100 |
|
| Product name: Access Control Machine |
| Item: S100EM |
| Details |
Working voltage: AC/DC 9V-28V
Metal shell, With Luminous keypad Waterproof IP68
Capacity: 2,000 users
Support EM card
can use password which irrelevant with the card to open the door

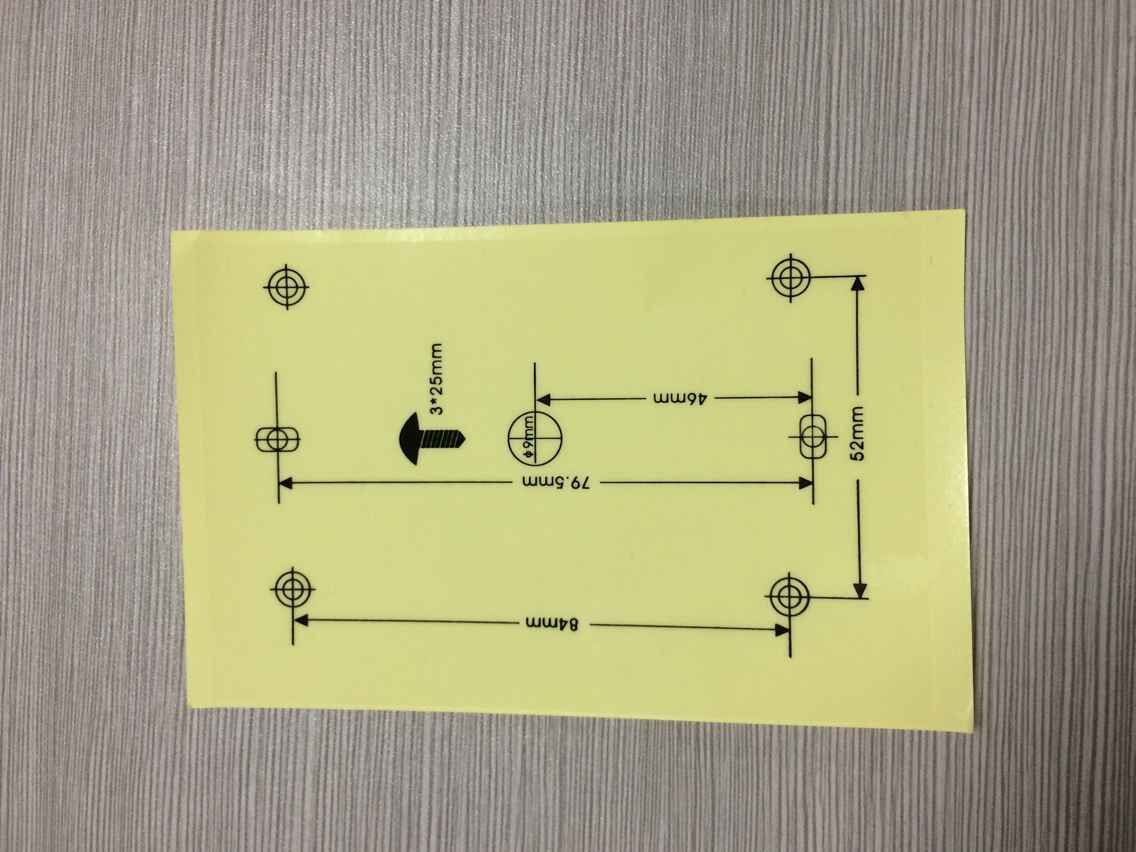

Size:120*80*25(mm) |
| |
◆Metal shell,backlight keypad,patent product
◆ CE&ROHS Approved
◆Working voltage DC/AC9V-28V
◆With standard Wiegand interface
◆Waterproof degree:IP68
Feature:
1. Perfect disign, Metal Case with Luminous keypad, anti-vandal
2. Waterproof Rating IP68.
3. WG26 output, can be used as a Access reader.
4.Capacity:2000 users
5.Access ways : cards ,code,card &code.
6.Low power :static current less than 30mA.
7.Functional keypad: All programming, adding and deleting
card/users can be done
via the keypad
8.Open-door time: 0~99 seconds(adjustable)
9.users can reset private passwords.
10.Search fast less than 0.1s .
11.With standard Wiegand interface, Wg26 for card or Wg34 for
codes.
12.use keypad to delete lost cards for safety.
13.Short-circuit protect : when relay or alarm output appear
short-circuit, the Output will close automatically within 100μS.
Technical parameters
Work Voltage:AC/DC9-28V
Static Current:Less than 30mA
Support Card:EM,Mifare
Reading Range:3~10cm
Capacity: 2000 users
Environment Temperature:-45C~60C
Environment Humidity:10%~90%
Output short-circuit protection time: less than 100μS
Open-door time:0 ~ 99 seconds (adjustable)
