Illuminated 12 Keys Metal Keypad Customized Blue Backlit 4x3 2.0mm Long Stroke

    Buy cheap Illuminated 12 Keys Metal Keypad Customized Blue Backlit 4x3 2.0mm Long Stroke from wholesalers

    Buy cheap Illuminated 12 Keys Metal Keypad Customized Blue Backlit 4x3 2.0mm Long Stroke from wholesalers
    • Buy cheap Illuminated 12 Keys Metal Keypad Customized Blue Backlit 4x3 2.0mm Long Stroke from wholesalers
    • Buy cheap Illuminated 12 Keys Metal Keypad Customized Blue Backlit 4x3 2.0mm Long Stroke from wholesalers
    • Buy cheap Illuminated 12 Keys Metal Keypad Customized Blue Backlit 4x3 2.0mm Long Stroke from wholesalers

    Illuminated 12 Keys Metal Keypad Customized Blue Backlit 4x3 2.0mm Long Stroke

    Ask Lasest Price
    Brand Name : IKB-MKB
    Model Number : K-TEK-A68KP-BL-DWP
    Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
    Price : USD
    Payment Terms : Full payment in advance, Western Union, T/T, Paypal
    Delivery Time : ASAP Within 2 weeks upon payment confirmed
    Supply Ability : 3000psc/month
    • Product Details
    • Company Profile

    Illuminated 12 Keys Metal Keypad Customized Blue Backlit 4x3 2.0mm Long Stroke

    Illuminated 12 Keys Metal Keypad Customized Blue Backlit Keypads 4x3


    DESCRIPTION:

    12 keys compact format IP67 dynamic water proof and vandal proof stainless steel industrial keypad with fully sealed industrial PCB with industrial electronics controller shielded & protected by stainless steel housing, with industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or panel.Industrial Backlight (red/blue/white/green) included.

    Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

    DIMENSIONS: 68.0mm x 90.0mm (front panel)


    MECHANICAL DATAELECTRICAL DATA
    Front Plate: 1.5mm thickness super quality brushed stainless steel
    Back plate: 1.0mm thickness super quality stainless steel
    Actuator/keys: 12 keys, super quality SUS304 brushed stainless steel flat key.
    Key top style: protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
    Key Size: 14.0mm x 14.0mm for normal keys
    Key travel: 2.0 mm
    Actuation Force: 1.2N+/-0.1N (pressure point).
    Switch life: more than 5 million of operations.
    G.W.: 0.60KGs
    Dimensions: 68.0mm x 90.0mm (L x W )
    Supply Voltage: +5V DC +/-5%
    Current Rating: appr. 150mA
    EMC Standard: EN 55032:2015 EN 55035:2017
    Lifespan > 5 years
    Switch Contact Material: Carbon-on-Gold key switch technology PCB.
    Interface: PS2, USB, RS232, RS485 available
    OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
    ENVIRONMENTAL ADAPTABILITY
    COMMUNICATION PARAMETEROperating temperature:-20℃ to +60℃
    Storage temperature: -30℃ to +70℃
    Operating RH: 30-90%
    Atmospheric pressure: 60-106Kpa.
    Saline mist: 96 hours, IEC 60512-6
    Damp heat test at + 40℃ : 21 days, IEC 60512-6
    Dry heat test at + 85℃ : 10 days, IEC 60512-6
    PS2/USB:
    Standard PS2/USB keyboard interface.
    12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code
    Any customized layout/codes are available upon customers’ requirements
    RS232:
    Standard RS232 serial interface.
    Communication velocity: 9600bps.
    Data format: N, 8, 1.
    12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code, 3 x 4 scanning code.
    Any customized layout/codes are available upon customers’ requirements
    RELIABILITY
    RoHS Compliant, CE and FCC, ESD
    Protection Level: IP67(front panel)
    Vandal resistant IK08
    Key Lifespan > 5 million actuations
    MTBF > 20000H
    MTTR < 30min

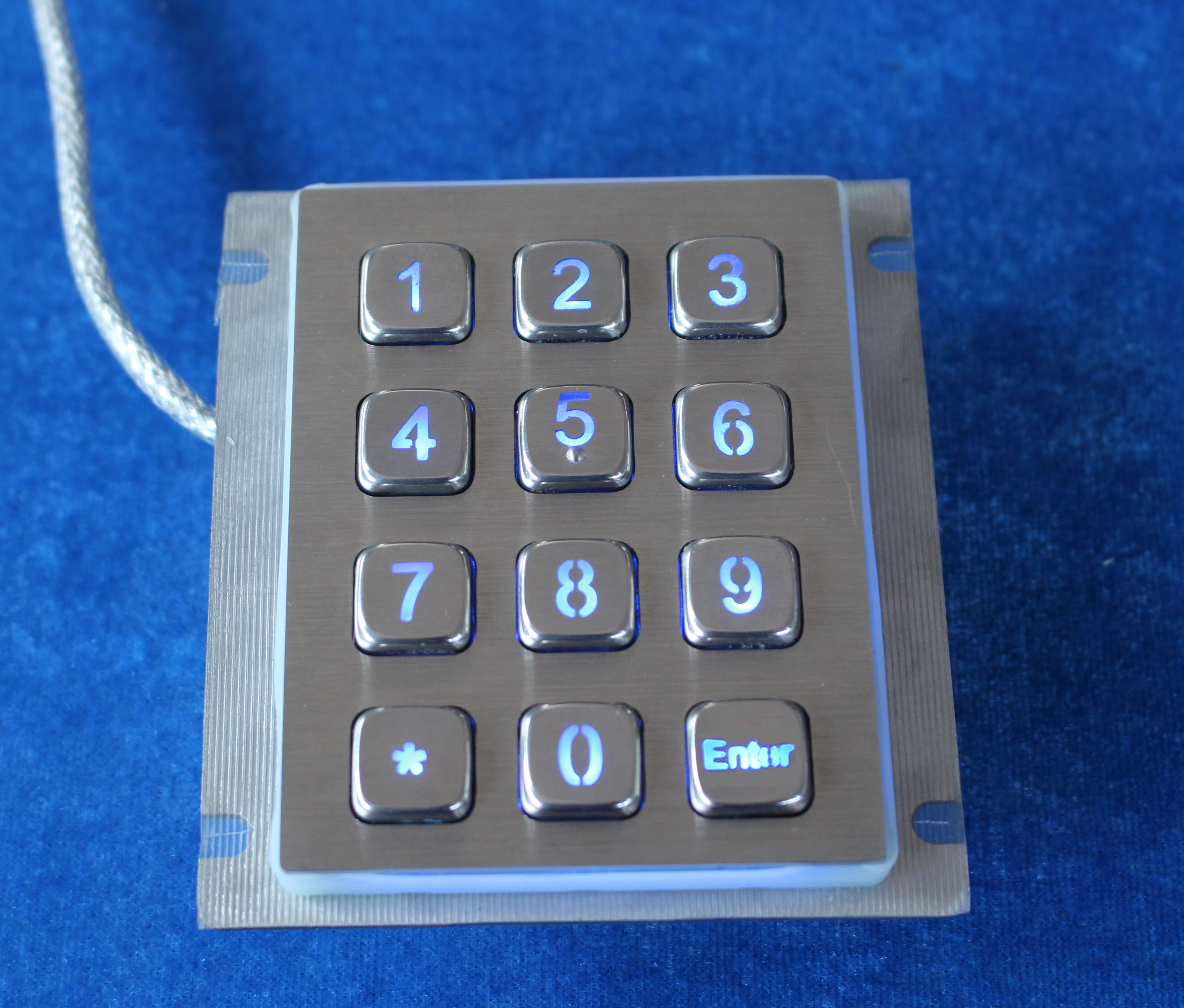

    Actual Photo:
