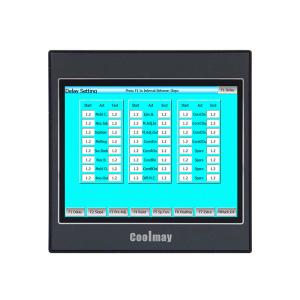

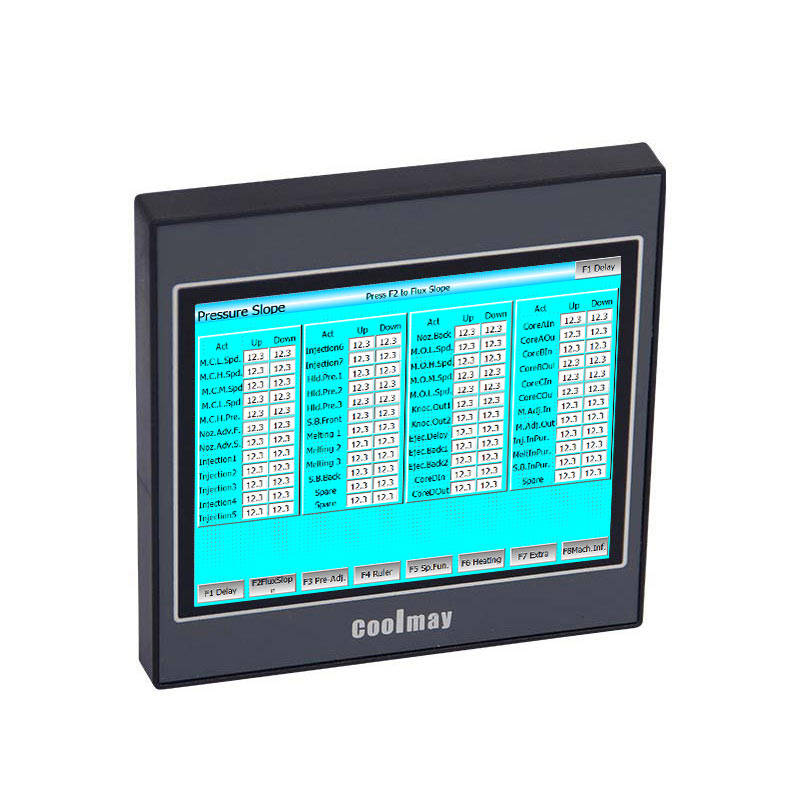

64MB RAM 73*56mm 3.5'' TFT Modbus Hmi Touch Screen 65536 True Colors LCD HMI

64MB RAM 73*56mm 3.5” TFT modbus hmi touch screen 65536 true colors lcd hmi

Human-Machine Interface (HMI) connects industrial control equipment such as programmable logic controllers (PLC), frequency converters, DC speed regulators, and meters. It is a digital device that uses the display screen to write working parameters or input operating commands through an input unit (such as a touchpad, a mouse, etc.) to realize information interaction between humans and machines. It consists of two parts: hardware and software.

PRODUCT DESCRIPTION of HMI PLC ALL IN ONE

Feature:

• Provides a large number of vector libraries and supports self-built gallery.
• High-precision,high-reliability resistive touch panel.
• Supports various formats of static images and GIF animations.
• Support all fonts WINDOWS provided.
• 60,000 TFT true color display.
• Support vertical display.
• Support Ethernet port and audio.
• Default Rs232/Rs485 port,support multiple protocols.
• Support 18 languages.

1.


2. Display	Display	3.5” TFT
   	Resolution (pixels)	320*240
   	Brightness	300cd/m2
   	Contrast ratio	400:1
   	Backlight	LED
   	Backlight time	60,000 h
   	Display color	65536 true colors
   	Touch type	4-wire resistive panel
   Storage	ROM	128MB
   	RAM	64MB
   	CPU	ARM9 core 400MHz
   Operating system		WINCE 5.0
   Interface	USB port	USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.)
   	Download port	Yes (Mini type B male port cable for program download
   	Ethernet port	Optional
   	COM port	1 RS232 and 1 RS485
   	Protocol	Support MODBUS, free port and common PLC communication Protocol
   Other	Audio	Optional
   	Calendar	Yes
   	Input Voltage	Default as DC12~24±10%V
   	Consumption	100mA*24V
   	Protection Class	IP65 (front panel)
   	Temperature	Ambient environment: 0～50℃ | Storage environment: -20～70℃
   	Humidity	20%～90% RH
   	Certification	CE
   	Software	CoolMay HMI programming software
