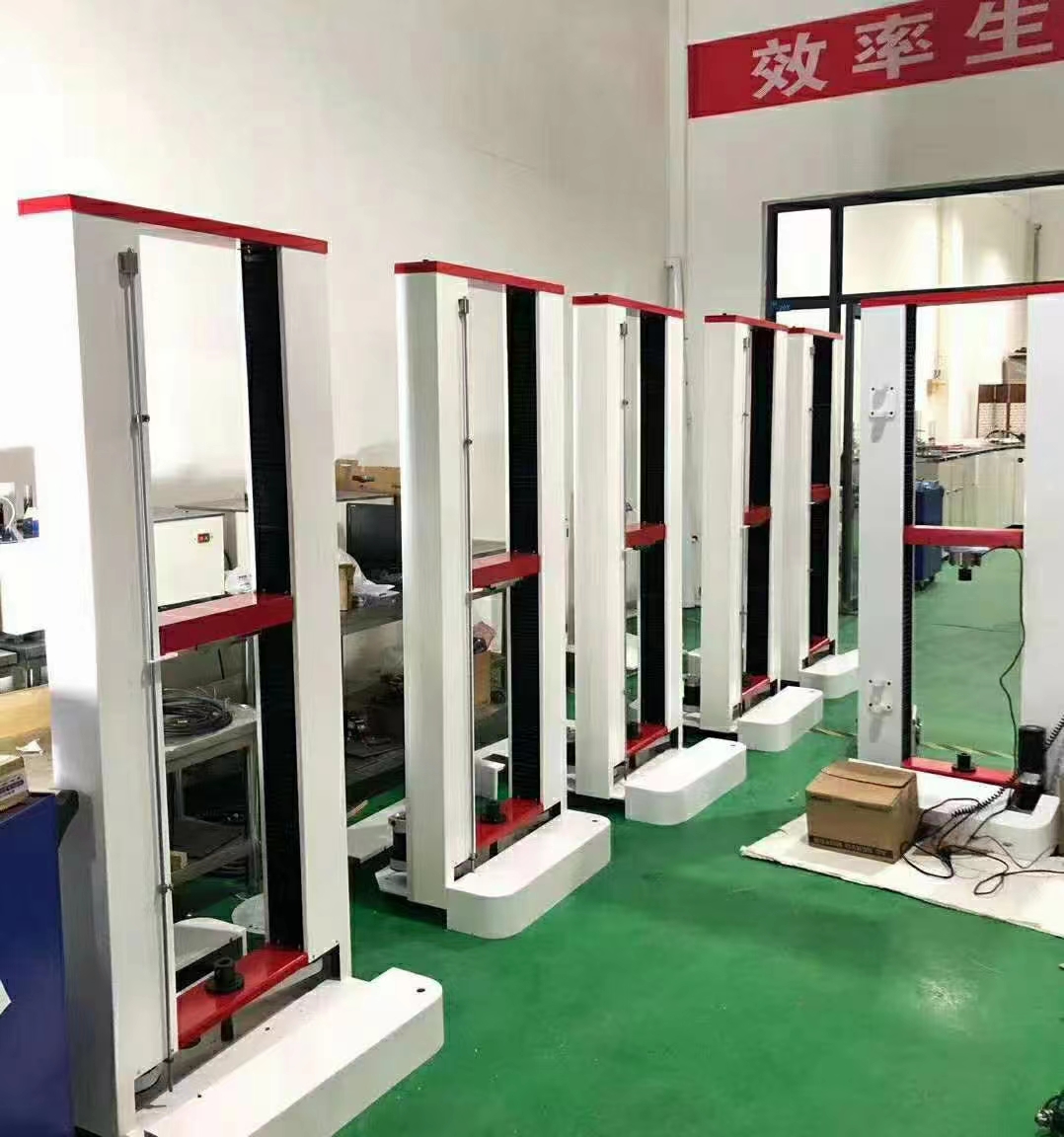

PC-compatible Lab Programmable Pull Electronic Universal Tensile
Testing Machine
Using:
PC-compatible Lab Programmable Pull Electronic Universal Tensile
Testing Machine is a mechanical testing machine used for static
load, tension, compression, bending, shear, tearing,peeling and
other mechanical properties of instruments and equipment for
various materials. Universal tensile test machine is suitable for
plastic sheets, pipes, Various physical and mechanical performance
tests for profiled materials, plastic films,rubber, wire and cable,
steel, glass fiber and other materials are developed for material
testing, teaching research, quality control and other indispensable
testing equipment. Tensile machine fixtures are used as
instruments. An important component,
different materials require different fixtures, which is also an
important factor in whether the test can proceed smoothly and the
accuracy of the test results.
Features:
1. Tested sample: laminated materials, wood, leather, rubber &
plastic, metal material, etc.
2. Different test with different grips: tensile, peel, tear, heat
seal, adhesive, bend and open force.
3. Deformation under defined load: Test deformation under defined
load of tested sample
4. Load under defined deformation: Test load under defined
deformation of tested sample
5. Software can issue word/excel report with results for max.
force, elongation, tensile strength, peel strength, tear strength,
compression strength, etc.
6. Can be installed extensometer to test deformation of rubber or
metal material.
7. Can do high temperature test by high temperature oven and
furnace.
8. Can be installed all kinds of test fixtures, manual / hydraulic
/ pneumatic fixtures.
9. Can be customized height, width, and follow any test standard or
customer requestion.
Meet Standards:
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, etc.
Software function:
1. The use of mulch-threaded parallel processing technology, the
testing process is displayed at the same time force - displacement,
force - time, displacement - time, stress - strain curve, you can
easily switch to the curve of the screen to see, and can view the
user settings, etc.
2. The flexible and powerful way to customize the test method, with
constant speed, position shift, given the strength, will power
rates, given stress, stress rate constant, constant strain, strain
rate and other fixed control mode, enabling complex multi-step
nested loop control. It can be set to automatic return, automatic
judgment fracture, auto-zero function.
3. Standardized test process control and report output templates so
that you can define as many test standard for users to call,
covering GB, ASTM, DIN, JIS, BS ... almost all test standards.
4. Combining different fixtures and accessories, do all kinds of
products and materials most strongly, breaking strength, peel
strength, tensile strength, shear strength, tear strength, maximum
deformation, yield strength, elongation, modulus of elasticity,
ring stiffness, non-proportional elongation, interval minimum
force, interval average power, power take constant elongation,
elongation given power to take as many as more than 400 pilot
projects
Main technical parameters:
| Model | XWW-200N/500N/5KN/10KN/30KN/50KN |
| Unit of Force | N, KN, G, KGF, LB |
| Type | Double column model |
| Accuracy Grade | Class 1 (Class 0.5 optional) |
| Force-measuring Range | 1%~100%FS(0.4%~100%FS optional) |
| Deformation-measuring Range | 2%~100%FS |
| Deformation-measuring Accuracy | ±1% |
| Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.05~500mm/min |
| Displacement Speed Accuracy | ≤ ±0.5% |
| Metal Extensometer Accuracy Grade | ±0.5% |
| Test width | 380(can up to 1200)mm |
| Tensile Space | 700mm |
| Compression Space | 1000mm |
| Clamps | Tensile, compression, bending, peel, fixture |
| PC System | Equiped with brand computer |
| Power Supply | AC 220V±10%, 50Hz (can be customized as customer request) |
| Size of the host | 700*400*2000mm |
| Packing size & Weight | 800*500*2100mm,about 350kg |
