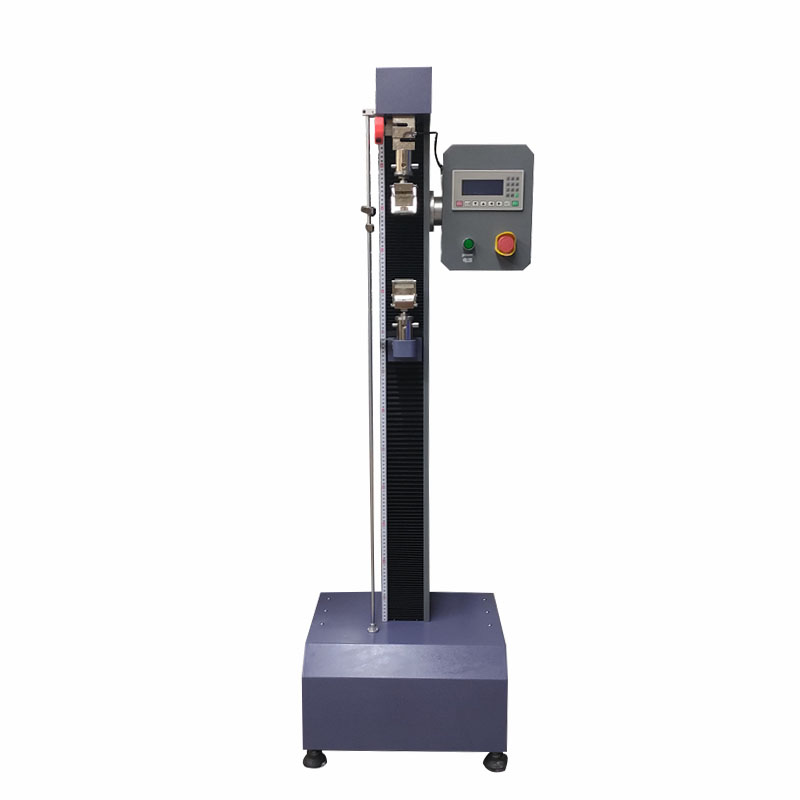

Electronic Computer Universal Tensile Testing Machine Strength Test
Price
Product Description:
The Electronic Multifunction Socks Tensile / Digital Socks Tensile
Instrument is mainly used to determine the straight
extension and transverse extension of stockings, swimwear,
pantyhose, belly and knitted pants.
Tensile test machines, also known as tension test machines, tensile
tester or pull tester, are universal testing machines
specially configured to evaluate the tensile strength of specimens.
Our tensile testers will measure characteristics such
as ultimate tensile strength, yield strength, elongation, and
modulus. Each tensile test machine is configured to your
testing needs by our application engineers with the correct
controller, grips, and accessories.Choose from 10 different
frames and two different technologies with 100’s of configurations
which allows you to optimize your testing capabilities
and pick exactly what you need.That means you get the exact system
that matches the specifications you need and fits
within your budget. More choices mean fewer compromises.
The main parameters:
1. Tensile speed: 20mm / s-250mm / s Promise adjustable;
2. Test movement: 100-3000mm; (can be customized to increase to
3400mm);
3. Rated tension, 0.1N-200N adjustable range, the test tensile
force can be set according to the actual test requirements;

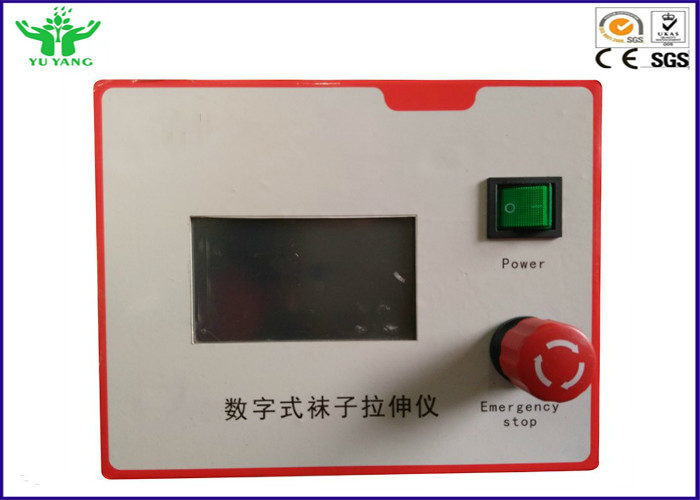

4. Side set LCD controller, set the tensile speed, rated tension,
stretch holding time and other test conditions parameters,
real-time display test test results;
5. Configuration pre-tensioning weight, manual fixture;
6. Test can be completed to test the sample elongation;
7. Structure size: 1000mm *700mm*3500mm;
8. Weight: 120kg.
| Model Number: | YYL-011 |
| Power: | Electronic |
| Structure size: | 1000mm *700mm*3500mm |
| Tensile speed: | 20mm / s-250mm / s Promise adjustable |
| Test movement: | 100-3000mm |
| Weight: | 120kg. |
Main Features:
1, the control panel location of about 100cm high, ergonomic and
practical needs, easy to operate;
2, vertical stretching structure, easy to sample installation and
testing;
3, vertical vertical structure, horizontal footprint is small;
4, Siemens PLC control system, precise control, stable and
reliable.
Performance Characteristics:
The instrument has built-in constant tensile test mode, fixed
tensile tensile test mode, satisfying different test requirements
such as fixed elongation force, constant elongation rate and
constant timing elongation. The system has a built-in force
elongation, ,
Elastic recovery, plastic deformation and other test options to
facilitate the user to choose the test method.
Standards:
FZ / T 70006, FZ / T 73001, FZ / T 73011, FZ / T 73013, FZ / T
73029, FZ / T 73030
