    Lap Core Amorphous Transformer Core Stacking Table Adjustable

    Ask Lasest Price
    Brand Name : STT
    Model Number : ZPT-3T
    Certification : CE, etc
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per year
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    Lap Core Amorphous Transformer Core Stacking Table Adjustable

    Lap Core Adjustable Stacking Table Amorphous Transformer Core Stacking Table


    Description of transformer core stacking table ZPT-3T

    Transformer core stacking table ZPT-3T is one kind of amorphous transformer core assembly equipment, which can be used to assemble iron core for amorphous transformer. The core stacking table can be used to assembly different sized of oil-immersed type amorphous transformer and dry-type amorphous transformers. The equipment changes the traditional assembly processes. Operators just need put a coil on the lifting table of the machine, make the axis of the coil horizontal, and insert every single frame iron core into the inner hole of the coil to complete folding iron cores, wrapping, mounting insulator, and clamping processes, etc. The height of the table working position can be easily adjusted to meet different assembly needs. The transformer core stacking table features easy operation, high effective and so on.


    Quick details of transformer core stacking table ZPT-3T

    • Working height 850mm
    • Hydraulic station
    • Linear guide
    • Maximum loading capacity 3000kg
    • Motor power 2.2kw
    • Hydraulic pressure 21MPa


    Main Parameters of transformer core stacking table

    Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however, the stacking table can also be manufactured as requested.

    No.ItemZPT-3T
    1Working height:850mm
    2Applicable Product Size:

    L:700-1600mm
    W:360-700mm
    H:400-900

    3Lifting Platform Loading Capacity:3000Kg
    4Lifting Platform Stroke:300mm
    5Lifting Speed:40mm/s
    6Total Power:2.2Kw
    8Stacking Table Weight1500Kg
    8Applicable Transformer capacity30KVA-2000KVA
    9Rotating Angle90°
    10Hydraulic Working Pressure21MPa

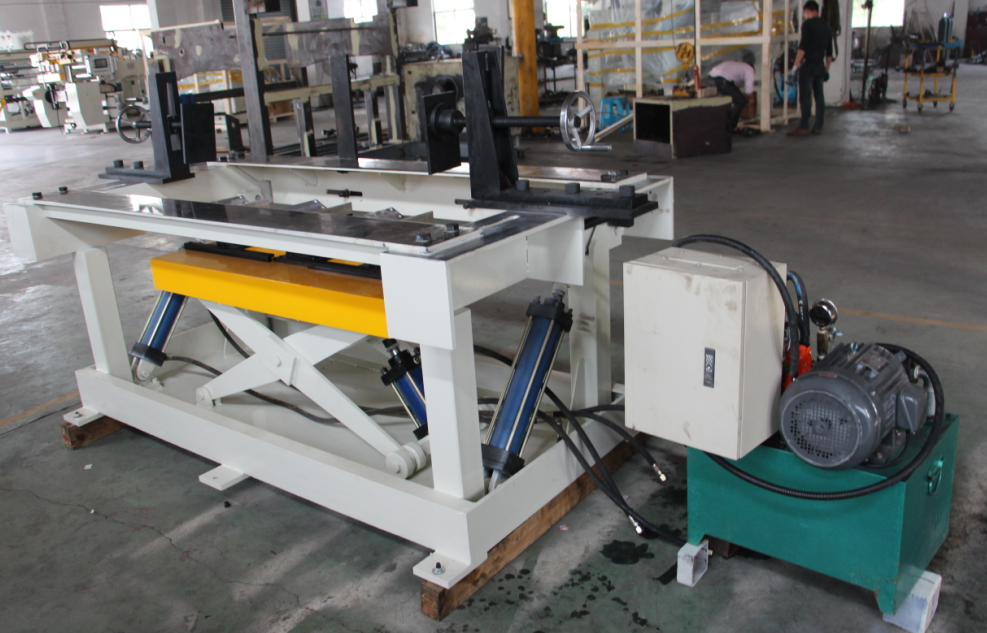

    Fig 1: Transformer core stacking table ZPT-3T's full view


    Fig 2: Transformer core stacking table ZPT-3T's tilting
