    Transformer Hydraulic Titling Platform Amorphous Core Stacking Table

    Ask Lasest Price
    Brand Name : STT
    Model Number : ZPT-3T
    Price : negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per year
    Delivery Time : 35 days
    • Product Details
    • Company Profile

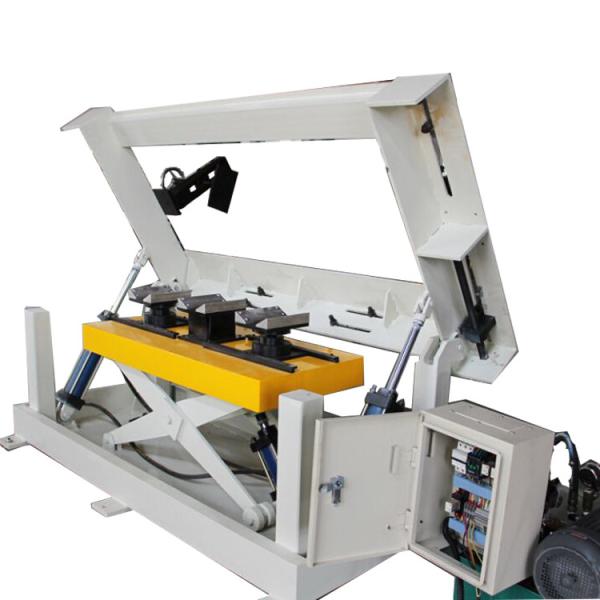

    Transformer Hydraulic Titling Platform Amorphous Core Stacking Table

    Hydraulic Driven Titling Platform Amorphous Transformer Core Stacking Table


    Description of transformer core stacking table ZPT-3T


    Amorphous transformer core stacking table ZPX-3T is a special equipment to assemble the amorphous alloy iron core for making transformer. The transformer core stacking table is with a function of tilting the platform, which can make the stacked core being taken away easily. The maximum weight of the stacked core can reach 3000kg. The stacking table is provided with a hydraulic station to lift and tilt. The stacking table is very easy to be operated. It is one of the features.


    Quick details of transformer core stacking table


    • 850mm height platform
    • One hydraulic station
    • Linear guide
    • Maximum stacked core weight 3000kg
    • Power 2.2kw
    • Hydraulic pressure 21MPa

    Main Parameters of transformer core stacking table


    Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however these can be easily modified as requested.

    No.ItemZPT-3T
    1Platform height from floor850mm
    2Stacked Core Size

    L:700-1600mm

    W:360-700mm

    H:400-900

    3Maximum Stacked Core Weight3000Kg
    4Platform Stroke300mm
    5Lifting Speed40mm/s
    6Motor Power2.2Kw
    8Table Weight1500Kg
    8Applicable Transformer30KVA-2000KVA
    9Rotating Angle90°
    10Hydraulic Working Pressure21MPa
