12P Copper Electric Motor Commutator DC Hook Type

12P Copper Hook Type Electrical Motor Commutator In DC Motor

The electrical motor commutator is widely used in a variety of electric tools, cars, motorcycles, household appliances and other electrical motors.

1. Commutator Parameters:

2. Commutator Selection

When the motor needs to replace the whole commutator, it is necessary to detect the outer circle diameter of the commutator, the diameter of the inner hole, the length of the copper piece and the number of slots and other parameters, and then select the commutator with similar parameters to be absolutely equal, and try to choose the clip type commutator for replacement.

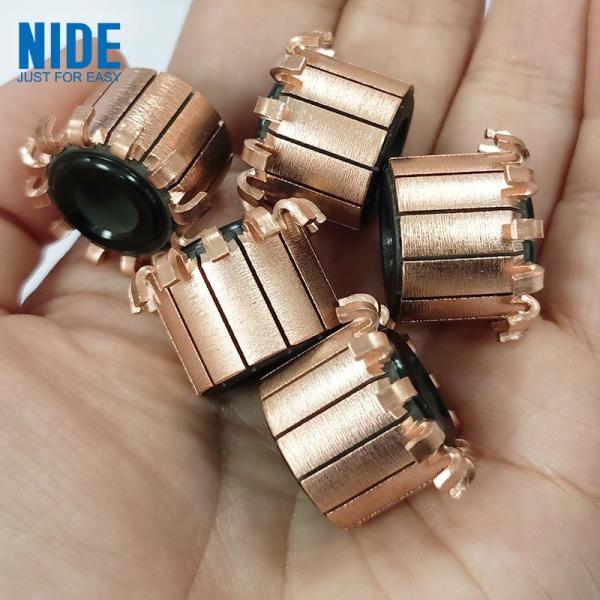

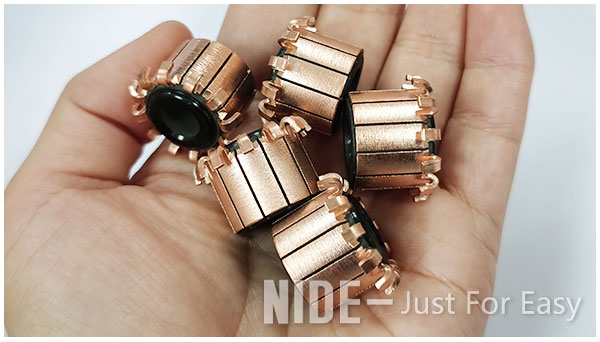

3. Commutator Picture

4. Commutator Replacement

a. Test whether the armature winding has short circuit and iron phenomenon, to be eliminated in time, so as not to leave behind trouble.

b. When the diameter of the inner hole of the commutator is small, it can be turned and enlarged on the lathe to reach the diameter of the inner hole required by the electric pivot; When the diameter of the inner hole is large, a bushing can be machined and pressed into the manhole.

c. The clip of the clip type commutator is generally a little longer, and the excess part can be cut off according to the need, and the opening is scraped clean for tin welding.

d. Slightly align the open slots of the commutator with the connecting wires of the armature winding one by one, and then slowly press the commutator onto the pivot until the position of the commutator meets the requirements.

e. Turn off the damaged commutator from the pivot shaft under the step of the wiring head or chisel the commutator after sawing a circle around the circle with a hacksaw under the step of the wiring head, then pull out and scrape the connecting wire head one by one with pliers for tin welding, and then remove the residual commutator part.

Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.
