Plane Type Auto Starter Motor Electronic Commutator / Electric Motor Components

    Buy cheap Plane Type Auto Starter Motor Electronic Commutator / Electric Motor Components from wholesalers

    Buy cheap Plane Type Auto Starter Motor Electronic Commutator / Electric Motor Components from wholesalers
    • Buy cheap Plane Type Auto Starter Motor Electronic Commutator / Electric Motor Components from wholesalers

    Plane Type Auto Starter Motor Electronic Commutator / Electric Motor Components

    Ask Lasest Price
    Brand Name : NIDE
    Model Number : NDPJ-HXQ-39
    Certification : CE
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000000 pcs per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

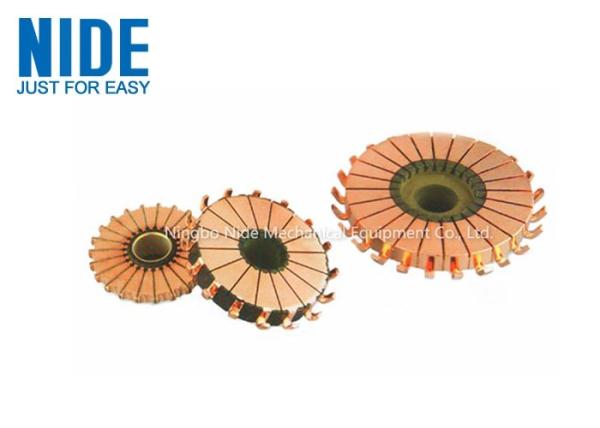

    Plane Type Auto Starter Motor Electronic Commutator / Electric Motor Components

    Nide commutator covers a wide range, more than 1200 different types of commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.


    Technical requirement of commutator:
    1. Voltage test: bar to bar at 500V, 1s, bar to bore at 1500V, 1 min, without breakdown or flashing.
    2. Spin test: do spin test for the commutator under 140 centigrade, 5000RPM, 3min. After testing, the max deviation of outer diameter is 0.015, that of bar and bar is 0.005.
    3. Insulation resistance: 500V, more than 50MΩ
    4. Free from bubble, cracks, or burr in the surface.


    Competitive advantages
    1. Sliver copper with high intension and wear resistance
    2. Long duration time
    3. Wide range of commutator
    4. Wide application of commutator
    5. Good quality
    6. Produce commutator as per customer’s drawing.

    Part No.O.D (D)I.D (d)Total O D (D1)Bar No(N)Bar length (L1)Total length (L)
    JZQE-RS12-1486313.273241626.5
    JZQE-RS12-148B632073241626.5
    JZQE-RS12-148C6313.273241626.5
    JZQE-RS12-149401543431018.2
    JZQE-RS31-1504412.08231012.5
    JZQE-RS31-150B4412.35231012.5
    JZQE-RS31-150C4412.06231012.5
    JZQE-RS31-150D44.212.08231012.5
    JZQE-RS31-150E4412231012.5
    JZQE-RS12-15147.613.257161424.5
    JZQE-RS12-151B47.613.257161422
    JZQE-RS12-151C47.61357161424.5
    JZQE-RS12-151D47.61357161422
    JZQE-RS12-151E47.613.457161424.5
    JZQE-RS31-1693812.08261014.3
    JZQE-RS12-193743385811212
    JZQE-RS12-24719.54735.5
    JZQE-RS12-3264913.2161415
    JZQE-RS32-3485824.125
    JZQE-RS32-46420.552585.78.5
    JZQE-RS32-464B20.5524.785.78.5
    JZQE-RS32-464C20.5524.785.78.5
    JZQE-RS32-464D20.552585.78.5
    JZQE-RS32-464E20.552585.78.5
    JZQE-RS12-4807823251323
    JZQE-RS32-50820.53.1752584.28.5
    JZQE-RS31-52544.212.08231013
    JZQE-RS31-525B44.212.35231013
    JZQE-RS31-525C44.212231013
    JZQE-RS32-55520.5324.785.78.6
    JZQE-RS12-59371.513.264242832.5
    JZQE-RS11-60852.516196.516
    JZQE-RS11-608B52.516196.516
    JZQE-RS32-61823428.5106.510
    JZQE-RS32-618B22.5428106.510
    JZQE-RS32-65147.61356.51612.518.5
    JZQE-RS32-6644813.457.51612.524.5
    JZQE-RS12-6885924.1582534.922
    JZQE-RS12-6895924.1582534.919.5
    JZQE-RS32-71747.613.356.5161224.77
    JZQE-RS32-73944.213.8231013
    JZQA-RS12-7523111.5402125.528
    JZQB-RS31-7926113.529916
    JZQE-RS31-79644.29231012.5
    JZQE-RS12-84648.510.248.525611
    JZQE-RS32-85447.613.256.616722
    JZQE-RS12-90748.510.248.525610
    JZQE-RS12-92664206031517


    Nide produces more than 1200 different types of electric motor stator and armature rotor brush commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

    motor electric commutator


    About Motor component and accessories
    NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
