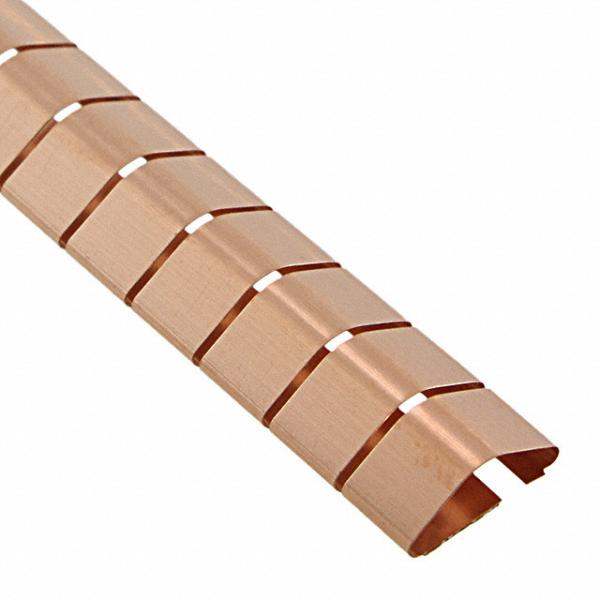

0.11mm Emi Shielding Gasket Beryllium Copper Finger Strips

Emi Shielding Finger Gasket Wire Mesh Fabric MRI Faraday Cage Installation

Description:

Beryllium-copper fingerstrips can be used to close a gap between two conductive surfaces.

They provide high EMI/RFI-shielding effectiveness in enclosure applications where extremely low closure forces are required.

The Beryllium-copper contact strips have high resistance to stress relaxation and good corrosion resistance.

They can be plated with a wide range of metal finishes to ensure compatibility with any mating surface.

They will not burn when exposed to radiation. Finger strips are the ideal product for EMI/RFI shielding across a broad frequency range.

Features/advantages:

Excellent electrical and RF conductivity
High tensile strength
High shielding effectiveness
Superb resistance to corrosion
Very long lifespan
Easy installation
Numerous plating options
Excellent performance at high temperatures
Moisture and UV resistant

Attachment methods:

Clip-on
Conductive adhesive
Soldering
Riveting
Snap-on tracks
Slots in your construction

Clip-on mounting fingerstrips 2100

This simple clamping system is suitable for sealing gaps between an EMI/RFI-shielded door and its door frame and similar applications

This series is designed for use where high temperature or other design considerations preclude the use of adhesive-mounted gasketing.

These Fingerstrips provide the same shielding characteristics and effectiveness as the 2300 series Stick-on mounting Fingerstrips.

2100 series Clip-on mounting fingerstrips offer shielding effectiveness >100 dB for 100 MHz plane wave.

The contact edge of this Fingerstrip series expands. The Fingerstrip has a low to high deflection (see technical drawings).

For applications where a small dynamic range is required and a spring clip mounting is preferred. Finger strips from this series are easy to mount by simply Clip-on or clip over the edge where it is to be attached through pressing / sliding.

Benefits

• Low compression force
• 100% recovery of original height at up to 60% compression
• "D" lance for extra holding power
• Optimum conductivity and mechanical properties of beryllium-copper
• High cycle life (50.000 cycles without fracture)

Bold items are 98% on stock.
