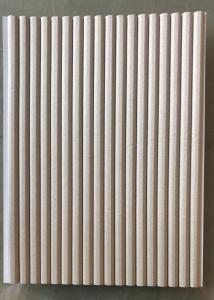

Customized Emi Shielding Gasket 12mm X 12mm Conductive Foam

EMI Shielding Gasket 12mm x 12mm Conductive FoamConductive Foam

Product Information:

Specification

Product Name: Conductive Foams

Product Performance:

Surface Resistive:≤0.05Ω/inch (100gload)

EMI Effectiveness:60dB-80dB/30MHz-1GHz (ASTM4935)

Heat Resistance Temperature: -10℃-110℃

Adhesion Strength:≥ 1.3 (kg/25mm)

Initial Adhesion:1600g/25mm (Non-conductive type)

Keep Adhesion:1440min/inch

Product Composition:

Density:50kg/m3

Elongation:75%

Fire Rating Grade: UL94 (HF-1)

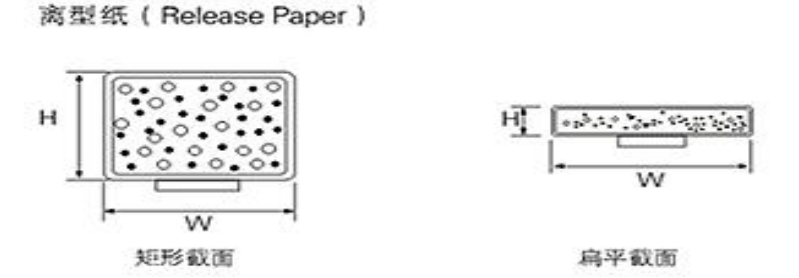

Structure Chart:

FAQ:

Q. Can I have a sample order for conductive foam?

A: Yes, of course, we welcome sample orders to test and check quality.

Q. What about the lead time?

A: Usually 5-7 work days.

Q. How to proceed an order for lead glass?

A: Firstly let us know your requirements or size, shape and also quantity.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms.

Fourthly We arrange the production.
