Miniature Compression Force Sensor 10N Force Transducer 20N
Pressure Load Cell 50N

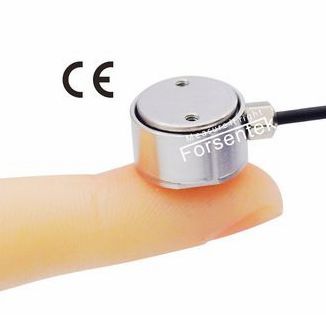

Miniature Compression Force Transducer FCFK is made of stainless steel based on strain gauge technology
to deliver maximum 0.3% non-linearity of the rated capacity.
Flanged Micro Compression Sensor FCFK offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N / 0-500N / 0-1kN / 0-2kN
eight measuring ranges to choose from, flange to flange mounting, compact
design, you may find micro force transducer FCFK applicable for
compression force measurement applications where mounting space is
limited, such as fixture clamping force measurement, assembly force
monitoring, force distribution test, force simulator, etc..
Miniature Column Compression Force Load Cell FCFK can also be
modified or customized as per client's request.

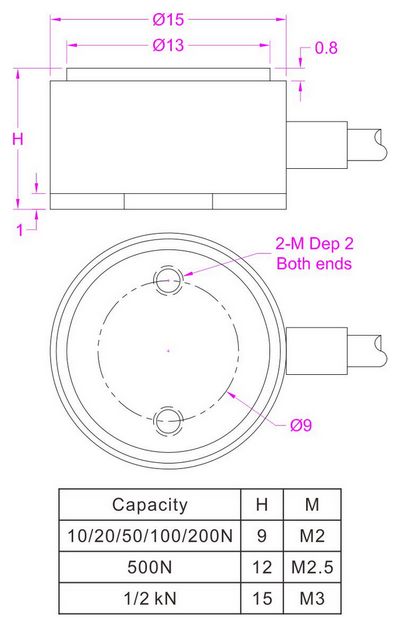

Dimensions(in milimeter)
| Ordering code | Measurement Range | Force direction |
| FCFK-10N | 0-10N / 0-2.2lb | Compression |
| FCFK-20N | 0-20N / 0-4.4lb |
| FCFK-50N | 0-50N / 0-0-10lb |
| FCFK-100N | 0-100N / 0-20lb |
| FCFK-200N | 0-200N / 0-45lb |
| FCFK-500N | 0-500N / 0-112lbf |
| FCFK-1kN | 0-1000N / 0-225lbs |
| FCFK-2kN | 0-2000N / 0-450lbf |
Specifications
| Capacity | 1kg / 2kg / 5kg / 10kg / 20kg / 50kg / 100kg / 200kg 2.2lb / 4.4lb / 11lb / 22lb / 45lb / 112lb / 225lbf / 450lbs
10N / 20N / 50N / 100N / 200N / 500N / 1kN / 2kN |
| Rated output | 2.0 mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±0.3% R.O. |
| Hysteresis | ±0.3% R.O. |
| Nonrepeatability | ±0.1% R.O. |
| Creep(5min) | ±0.1% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.03% R.O./oC |
| Temperature shift span | ±0.03% R.O./oC |
| Input resistance | 385±50 ohms |
| Output resistance | 350±5 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP50 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Output signal of load cell FCFK:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature Flat Load Cell FCFK is normally around
2.0mV/V.
Power supply of Press Force Sensor FCFK is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Type Force Transducer FCFK is
normally within 0…+30mV.
Example one: Miniature Column Load Cell FCFK-100N with 2.0V/V
sensitivity powered by 5V DC,the output range is 0mV...+10mV.
Example two: Miniature Flanged Load Cell FCFK-200N with 2.0mV/V
rated output powered by 10V DC,the output range is -0mV...+20mV.
The mV/V output from the wheatstone bridge sometimes can hardly be
processed directly, a signal conditioner can be used with the load
cell to deliver 0~5V, 0-10V or 4-20mA output.
Example one: Micro Compression Load Cell FCFK-10N working with amplifier FSC(0-10V)-24V,the Load-Voltage
relationship will be 0-10N compression force VS 0-10V output, which
is linear regardless of the measurement error, 1V output
corresponds to 1N compression load, 2V output corresponds to 2N
compression load, and so on.
Example two: Miniature Flanged Load Cell FCFK-20N working with
amplifier FSC(4-20mA)-24V,the Force-Current relationship will be
0-20N compression force VS 4-20mA output, which is linear
regardless of the measurement error, 4mA output corresponds to “0”
load, 5.6mA output corresponds to 2N compression load, 12mA output
corresponds to 10N compression load, and so on.
Load cell FCFK can also work with digital indicator FPT to deliver
below functions:
-Display force value in real time
-Peak holding to grab the maximum force during testing
-RS485 or RS232 interface
-0-5V/0-10V/4-20mA analog output
-Switch output
