Miniature Button Type Compression Force Sensor 10kN 20kN
Compression Force Measurement

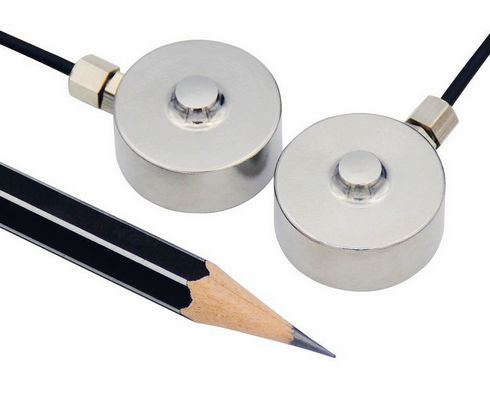

Miniature Compression Force Sensor 10kN 20kN FC2D is made of stainless steel based on strain gauge technology
which offers 0-10kN / 0-20kN two rated measuring ranges to choose
from, compact design makes button type load cell FC2D suitable for
compression force measurement applications with limited mounting
space. Each sensor comes with a 3-meter-long shielded cable, 4xM2.5
threaded holes located on the bottom make it easy to mount
Compression Force Transducer FC2D to a flat platform,you may find Miniature Button Load Cell FC2D suitable for applications such as load distribution analysis,
mold pressure measurement, force overload protection, clamping
force measurement, assembly force monitoring, hydraulics force
control and so on.
Output signal of load cell and amplifier:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Button Load Cell FC2D is normally around 1.5mV/V.
Power supply of Press Load cell FC2D is normally within 3-15V.
Load / Capacity is within 0-1.
So the output range of Compression Type Force Sensor FC2D is
normally within 0…+22.5mV.
Example one: Miniature Button Load Cell FC2D-10kN with 1.5mV/V
sensitivity powered by 5V DC,the output range is 0mV...+7.5mV.
Example two: Miniature Compression Load Cell FC2D-20kN with 1.5mV/V
rated output powered by 10V DC,the output range is -0mV...+15mV.
The mV/V output from the wheatstone bridge sometimes can hardly be
processed directly, a signal conditioner can be used with the load
cell to deliver -5~5V, 0-10V or 4-20mA output.
Example one: Button Type Compression Load Cell FC2D-1000kg working
with amplifier FSC(0-10V)-24V,the Load-Voltage relationship will be
0-1000kg compression force VS 0-10V output, which is linear
regardless of the measurement error, 1V output corresponds to 100kg
compression load, 2V output corresponds to 200kg compression load,
and so on.
Example two: Miniature Button Type Load Cell FC2D-1000kg working
with amplifier FSC(4-20mA)-24V,the Force-Current relationship will
be 0-1000kg compression force VS 4-20mA output, which is linear
regardless of the measurement error, 4mA output corresponds to “0” load,
5.6mA output corresponds to 100kg compression load, 12mA output
corresponds to 500kg compression load, and so on.
Specifications
| Capacity | 10kN / 1000kg / 2.2klb 20kN / 2000kg / 4.5klb |
| Rated output | 1.5mV/V |
| Excitation | 3-15V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±1% of full capacity |
| Hysteresis | ±1% of full capacity |
| Nonrepeatability | ±0.5% of full capacity |
| Creep(3min) | ±0.3% of full capacity |
| Safe overload | 150% of full capacity |
| Ultimate overload | 200% of full capacity |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø1.9*3000mm 4-core shielded cable |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
A load cell is a transducer that converts mechanical load into mV
signal proportional to the applied load.The acting force causes
deformation of the measuring element,the bonded strain gauge
deforms accordingly which will cause the resistance change of the
wheatstone bridge,under constant power supply, the output signal
between Sig+ and Sig- will change proportionally,thus the
load/force can be measured by measuring the output signal from the
transducer. The output range of Miniature Button Load Cell FC2D is
normally within 0mV...+25mV, signal amplification may be required
for most applications, a signal conditioner can be used to get
0~5V, 0-10V or 4-20mA output for easy data processing.
Miniature Button Type Compression Force Sensor 10kN 20kN
Compression Force Measurement
Dimensions(Unit in milimeter)
Ordering code: FC2D-10kN, FC2D-20kN
