Technical parameters
♦ Multifunction programmable digital relay with 4 digit LCD
display.
♦ Control and setting are done by 3 buttons, user-friendly menu,
absolute accuracy in timer setting, time countdown on a display,
galvanucally separated START and STOP control inputs with UNI
supply.
♦ Thanks to its complexity, it is possible to program also more
demanding time functions by using 2 indepedent times.
♦ 2 independent times, with conbination of 2 inputs and 2 outputs.
♦ DT9-2M10: 10 functions, 1output of 10 functions can be assigned
to each relay=2 relays in one device.

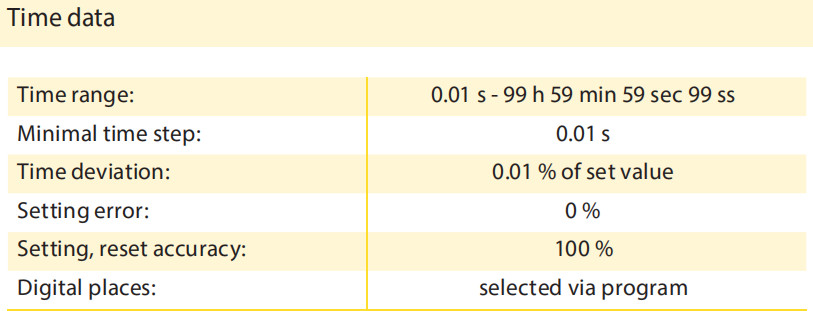

♦ 2 independent times in range: 0.01s-100hrs.
♦ Supply voltage: AC/DC 12-240V or AC 230V.
♦ 3 MODULE, DIN rail mounting.
