DV1-01 Programmable Complete Monitoring 3 phase Mains Voltage Monitor Relay

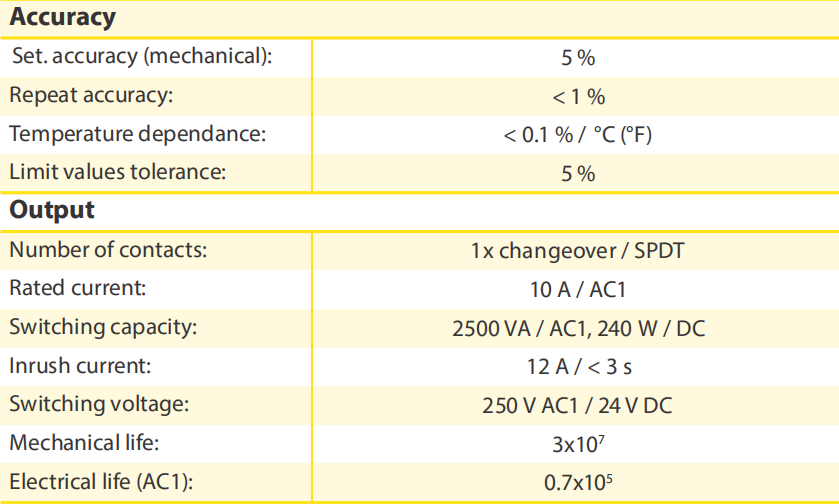

Technical parameters

♦ Monitoring of 3-phase mains:

- voltage in 2 levels (undervoltage and overvoltage) in range 120-277V (3P+N) or 208-480V (3P3W).

- phase asymmetry

- phase sequence

- phase failure

♦ A400: for circuit 3×400V (without neutral).

♦ N230: for circuit 3×400/230V (with neutral).

♦ Output contact: 1×changeover 10A/250V AC1

♦ 2.5-MODULE, DIN rail mounting

Description

Connection

Symbol

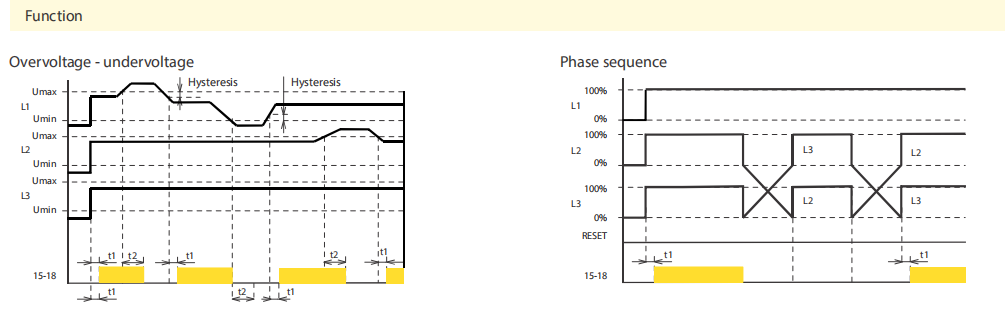

Function

Model	Rated current	Switching voltage	Unit	Price
DV1-01	10A/AC1	250V AC1/24V DC	1PC	$10.87
