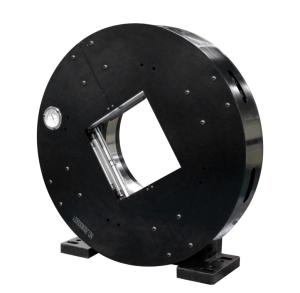

Auto Feeding Lathe Chuck With Full Through Hole for Laser Cutting
Machine
1. Description
Our laser chuck is specially designed for laser tube cutting
equipment. It can be used as an independent rotating spindle with a
chuck which can firmly clamp workpiece and rotate simultaneously.
Rotating air intake is achieved by the rear-mounted rotator so as
to achieve fast clamping and loosening actions. The gas source is
the principle of continuous air supply when the chuck works.
The enter of the product is a through structure. In order to make
the environment clean and hygienic, the products of this series can
be quipped with a dust extraction device on the back.
2. Performance Parameters
| W220T-40 |
| 57mm |
| 2.4KN |
| 0.3-1.0MPa |
| 400r/min |
| 10-225mm |
| 145mm |
| 0.23kg.m² |
| 43kg |
| 81kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | H | M | N | P | Q | S | T | G |
| W220T-40 | 280 | 145 | 224 | 308 | 120 | 70 | 250 | 40 | 36 | 3 | 25 | M8 | 18 | 424 | 669 |
4. Advantages
a. Full stroke design
b. Wide range of applications, diversification of processing
profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws
